Manual Transaxle Unit Components
Manual Transaxle Unit Components

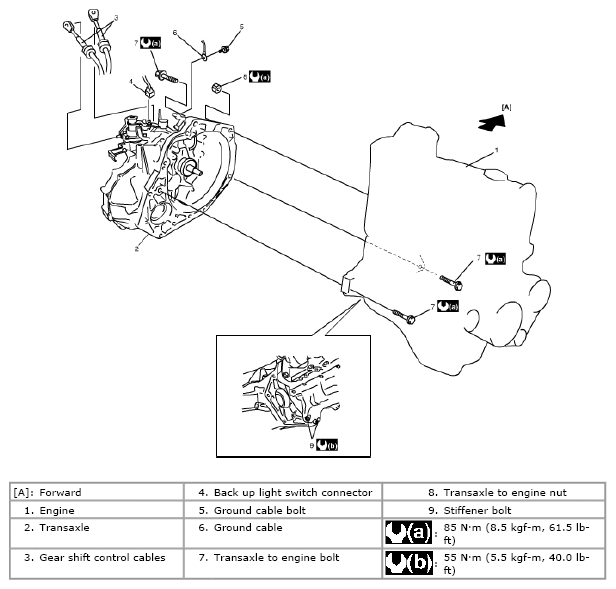

Fig 1: Identifying Manual Transaxle Unit Components With Tightening Torque
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
