Manual Transaxle Assembly Components

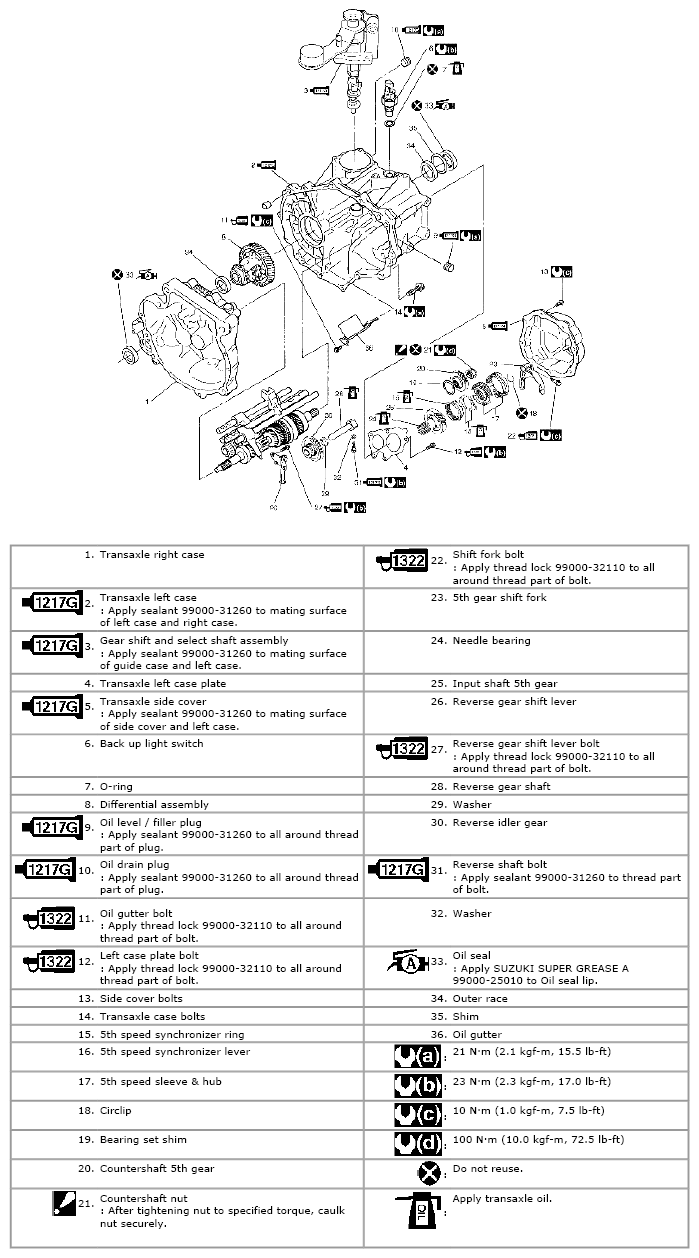

Fig 1: Identifying Manual Transaxle Assembly Components With Tightening Torques

G04848064

Courtesy of SUZUKI OF AMERICA CORP.
