Input Shaft and Countershaft Components

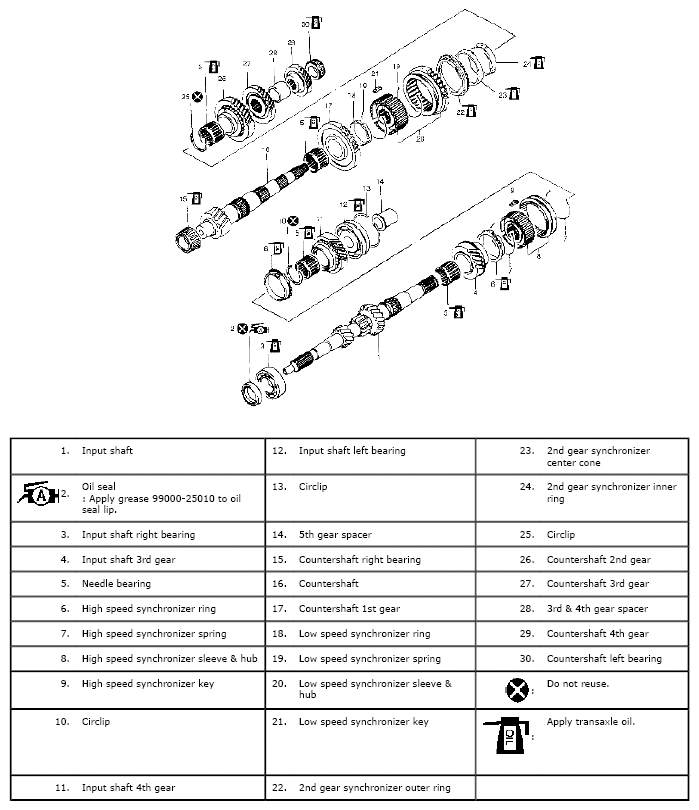

Fig 1: Exploded View Of Input Shaft And Countershaft Components

G04848103

Courtesy of SUZUKI OF AMERICA CORP.
