Body Frame Dimensions

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Body Frame Dimensions (1 Of 2)
G04720288Courtesy of SUZUKI OF AMERICA CORP.

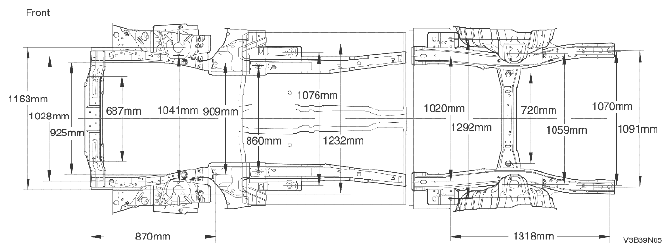

Fig 2: Body Frame Dimensions (2 Of 2)
G04720289Courtesy of SUZUKI OF AMERICA CORP.
