Fuel Injector Circuit Check: Wiring Diagram

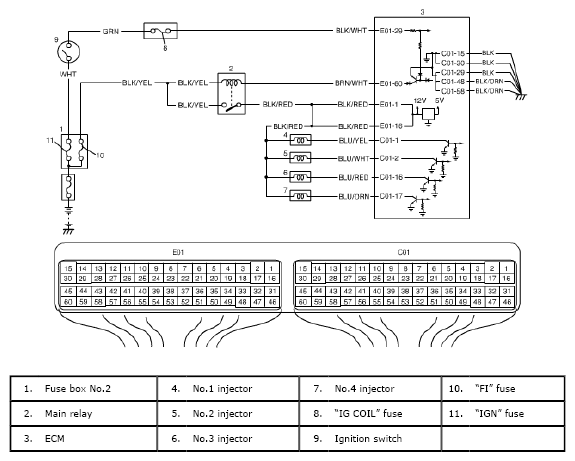

Fig 1: Fuel Injector Circuit - Wiring Diagram

G04846627

Courtesy of SUZUKI OF AMERICA CORP.
