Generator Unit Components

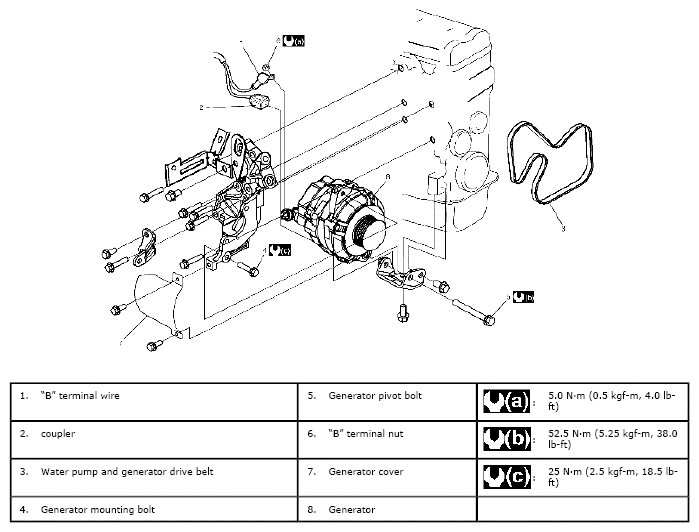

Fig 1: Generator Unit Components & Torque Specification

G04847113

Courtesy of SUZUKI OF AMERICA CORP.
