BCM and Related System Component Location

Reference: BCM GENERAL DESCRIPTION

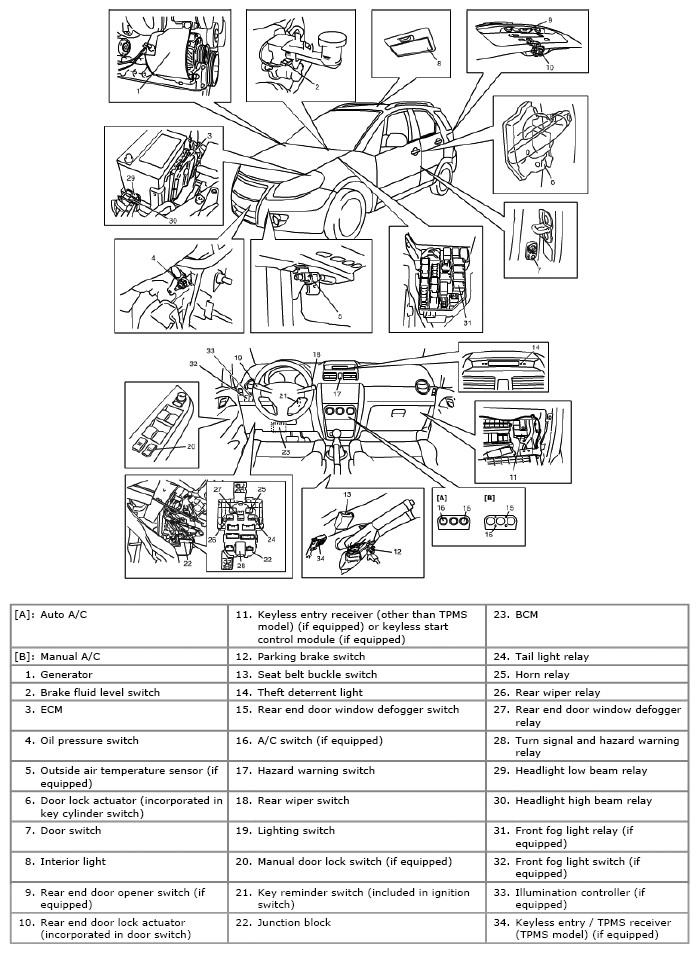

Fig 1: Identifying BCM & Related System Components

G04849127

Courtesy of SUZUKI OF AMERICA CORP.
