Front Door Lock Assembly Components
Front Door Lock Assembly Components

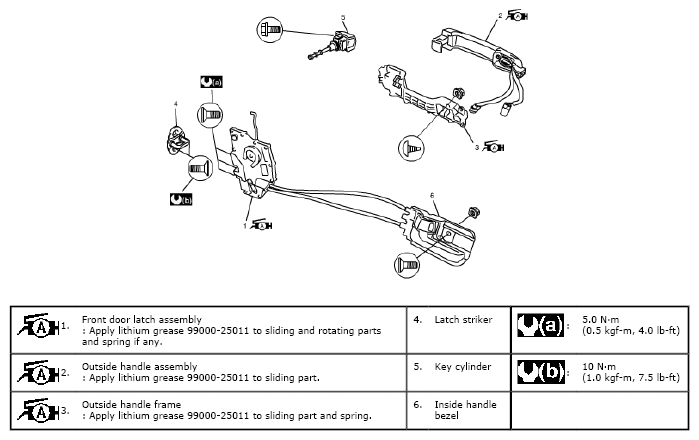

Fig 1: Identifying Front Door Lock Assembly Components And Tightening Torques
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
