General Description
>>
Input / Output Diagram
Input / Output Diagram

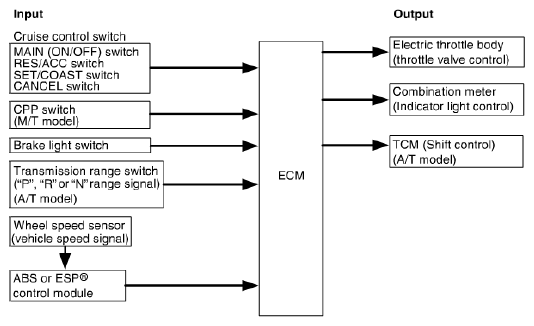

Fig 1: Cruise Control System Input / Output Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
