Forward and Direct Clutch Components

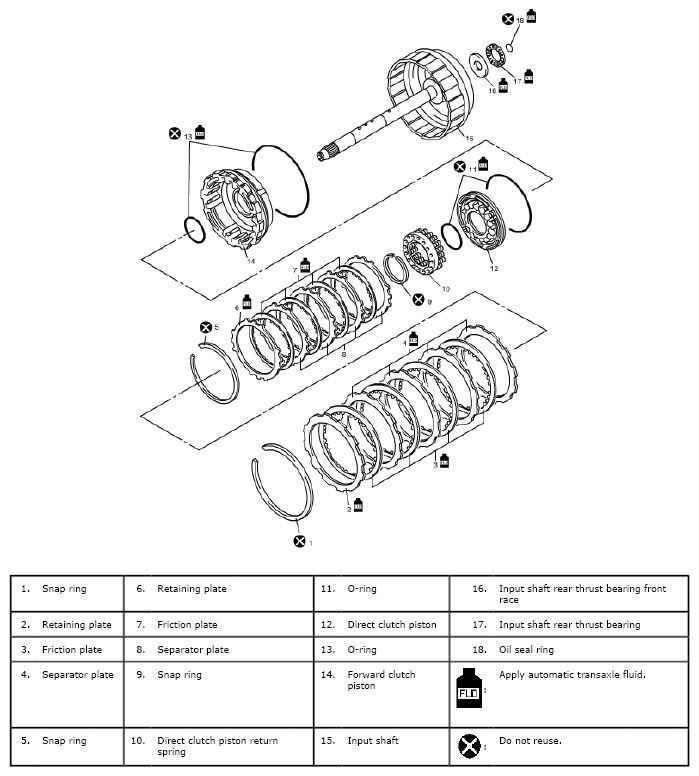

Fig 1: Exploded View Of Forward & Direct Clutch Components

G04847887

Courtesy of SUZUKI OF AMERICA CORP.
