Centering Contact Coil Cable Assembly

Reference: CONTACT COIL CABLE ASSEMBLY REMOVAL AND INSTALLATION

1. Check that vehicle's wheels (front tires) are set at straight-ahead position.
2. Check that ignition switch is at LOCK position.
3. Turn contact coil counterclockwise slowly with a light force till contact coil will not turn any further.
   NOTE: Contact coil can turn about 5 turns at the maximum, that is, if it is at the center position, can turn about two and a half turns both clockwise and counterclockwise.

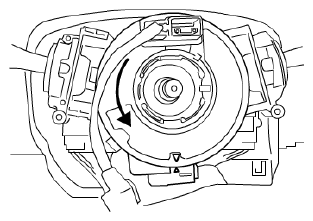

   Fig 1: Turning Contact Coil Counterclockwise

   Courtesy of SUZUKI OF AMERICA CORP.
4. From the position where contact coil became unable to turn any further (it stopped), turn it back clockwise about two and a half rotations and align center mark with alignment mark (1).

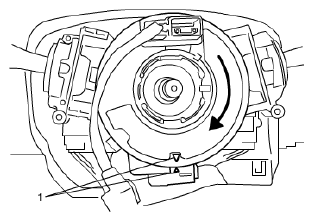

   Fig 2: Aligning Center Mark With Alignment Mark

   Courtesy of SUZUKI OF AMERICA CORP.
