Front Door Lock Assembly Removal And Installation: Installation
WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara, 2007 Suzuki Grand Vitara, and 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
Reverse removal procedure to install front door lock assembly noting the following instructions.
- Apply grease to sliding parts of door latch assembly.
Grease 99000-25010SUZUKI Super Grease A ()

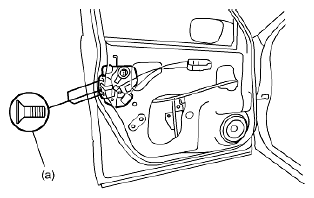

- Tighten door latch screws to specified torque.
Tightening torque
Door latch screw a: 5.0 N.m (0.5 kg-m, 4.0 lb-ft)
- Move door latch striker (2) up or down so its center aligns with the center of groove "A" on the door lock assembly (1) as shown.
Striker should be moved vertically and placed level.
Do not adjust door lock.
Tightening torque
Door latch striker screw a: 10 N.m (1.0 kg-m, 7.5 lb-ft)

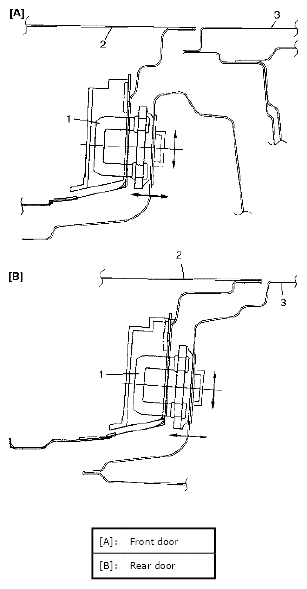

- Move door latch striker (1) sideways to adjust door outer panel surface (2) flush with rear door outer panel or body outer panel surface (3) as shown.
In order to correctly obtain door lock operation increase or decrease number of shims inserted between body and striker (1) to adjust it.
