Power Door Lock And Keyless Entry System Component Location

WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara, 2007 Suzuki Grand Vitara, and 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

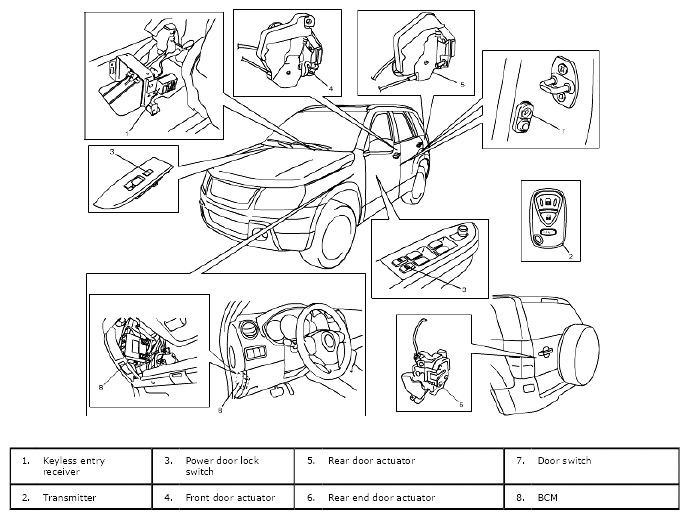

Fig 1: Power Door Lock & Keyless Entry System Component Location
G04809889Courtesy of SUZUKI OF AMERICA CORP.
