EVAP Leak Check Pressure Sensor (combine with BARO sensor) check

Reference: EVAP LEAK CHECK MODULE REMOVAL AND INSTALLATION

Check barometric pressure and reference vacuum pressure as follows.

1. Initial (barometric) pressure check:
   1. Arrange 3 new 1.5 V batteries (1) in series and connect its positive terminal to terminal "4" for EVAP leak check pressure sensor of EVAP leak check module and negative terminal "2".
   2. Check EVAP leak check pressure sensor output voltage (barometric pressure signal voltage) between terminal "3" and "Ground" terminal.

      If output voltage is out of specification, replace EVAP leak check module.

      If output voltage is within specified value, go to next step.

      CAUTION: Check to make sure that connection is made between correct terminals. Wrong connection can cause damage to EVAP leak check pressure sensor in EVAP leak check module.

      EVAP leak check pressure sensor output voltage for initial (barometric) pressure (Terminal "4" voltage 4.5 - 5.5 V, ambient temp. 20 - 30 °C (68 - 86 °F))

      EVAP LEAK CHECK PRESSURE SENSOR VOLTAGE CHART



      Altitude (Reference)		Barometric Pressure		Output Voltage
      (ft)	(m)	(mmHg)	(kPa)	(V)
      0 - 2000	0 - 610	760 - 707	100 - 94	3.605 - 3.278
      2001 - 5000	611 - 1524	Under 707, over 634	94 - 85	3.278 - 2.788
      5001 - 8000	1525 - 2438	Under 634, over 567	85 - 76	2.788 - 2.297
      8001 - 10000	2439 - 3048	Under 567, over 526	76 - 70	2.297 - 1.970

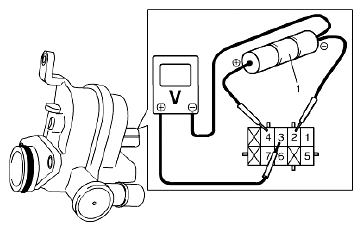

      Fig 1: Checking Pressure Sensor Output Voltage Between Terminal 3 And Ground Terminal

      Courtesy of SUZUKI OF AMERICA CORP.
2. Reference vacuum pressure (reference orifice vacuum) check:

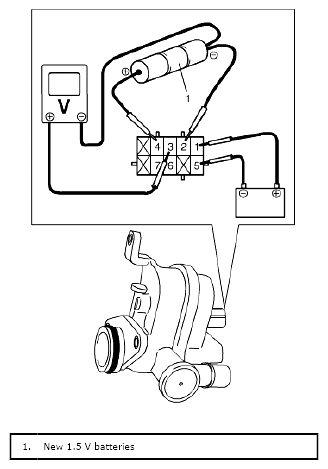

   1. In the state of Step  1), operate EVAP leak detection pump by connecting 12 V-battery to terminal "1" and terminal "5" of EVAP leak check module. Under pump operating, check that pressure sensor output voltage (reference orifice vacuum) becomes lower than pressure sensor output voltage of Step  1) by approx. 0.1 V. If sensor voltage is out of specification, replace EVAP leak check module.
      Fig 2: Identifying EVAP Leak Module O-Ring

      Courtesy of SUZUKI OF AMERICA CORP.
