Ignition System Wiring Circuit Diagram

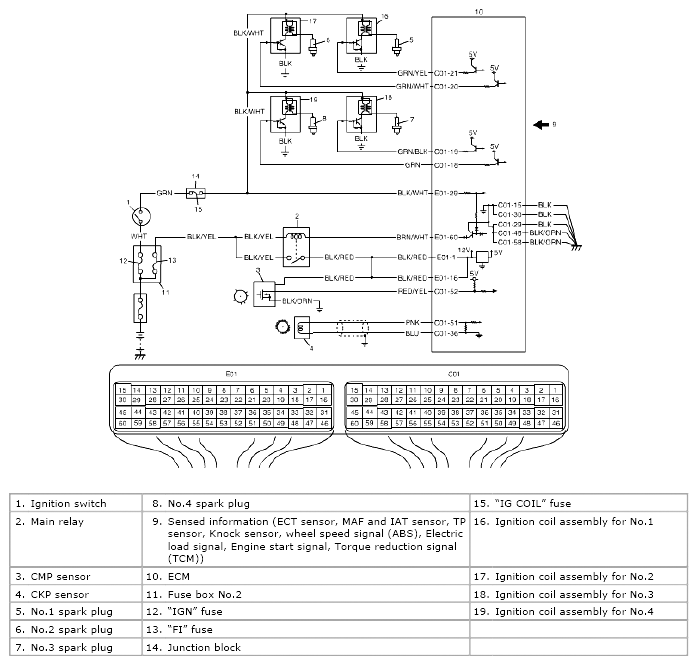

Fig 1: Ignition System Circuit

G04847059

Courtesy of SUZUKI OF AMERICA CORP.
