Engine and Emission Control System Diagram

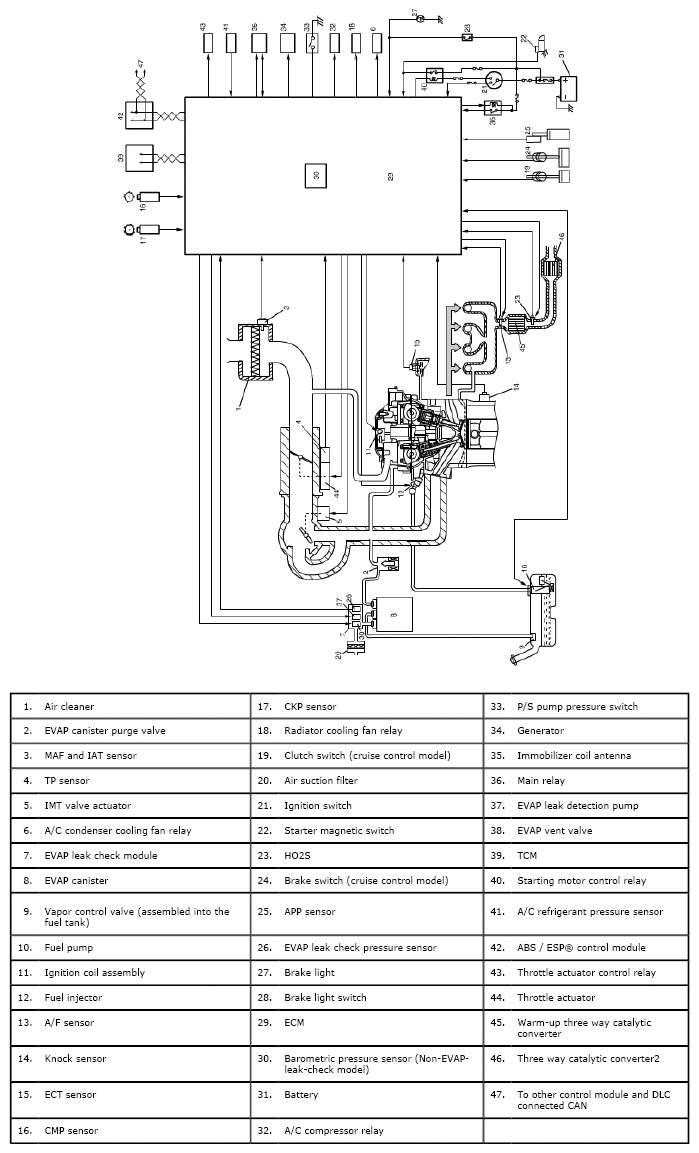

Fig 1: Engine And Emission Control System Diagram

G04846551

Courtesy of SUZUKI OF AMERICA CORP.
