Home >> Suzuki >> 2007 >> SX4 Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information And Diagnosis >> Diagnostic Information and Procedures >> DTC P1425: EVAP Pump Flow Low >> System Diagram

System Diagram

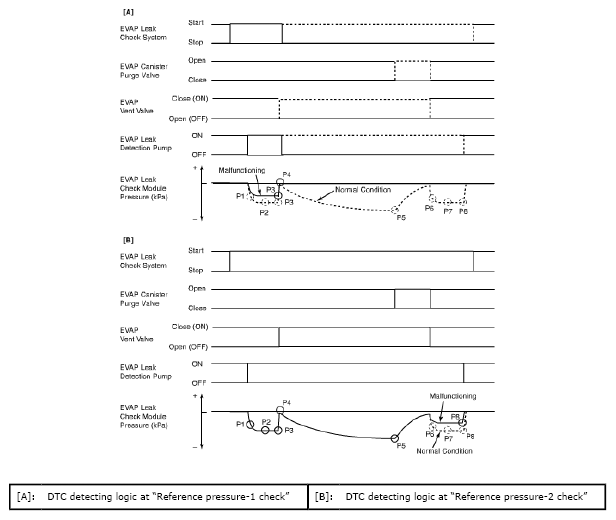

Fig 1: EVAP Leak Check System Description
G04846590Courtesy of SUZUKI OF AMERICA CORP.
