DTC P0122 / P0123: Throttle / Pedal Position Sensor / Switch "A" Circuit Low / High: Wiring Diagram

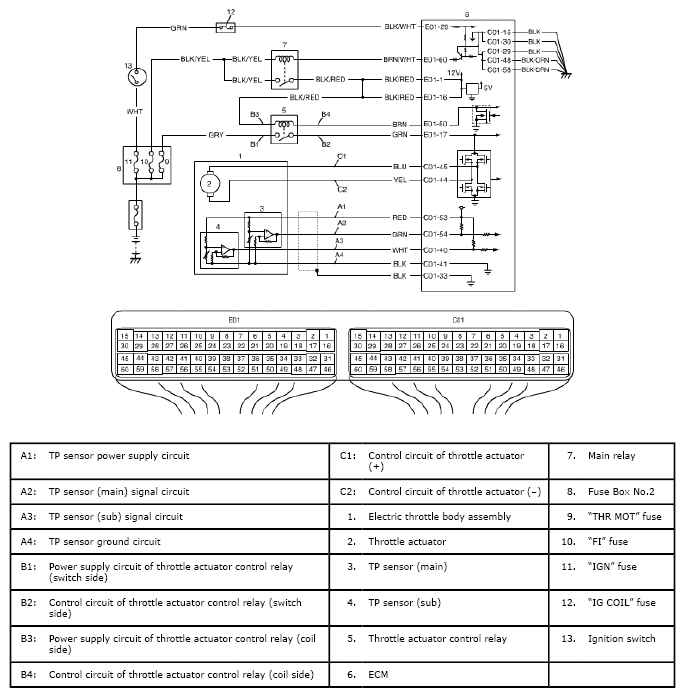

Fig 1: Throttle Pedal Position Sensor - Wiring Diagram (Low/High)

G04846566

Courtesy of SUZUKI OF AMERICA CORP.
