Home >> Suzuki >> 2007 >> SX4 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Immobilizer System >> Component Location >> Immobilizer Control System Components Location

Immobilizer Control System Components Location

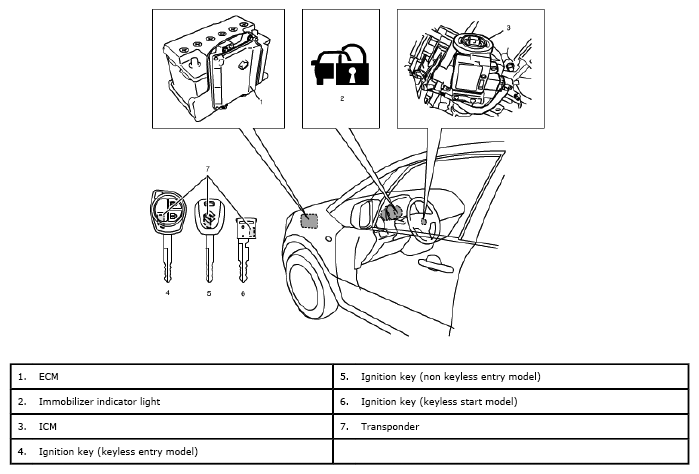

Fig 1: Identifying Immobilizer Control System Components Location

G04849156

Courtesy of SUZUKI OF AMERICA CORP.
