Shift Linkage Components

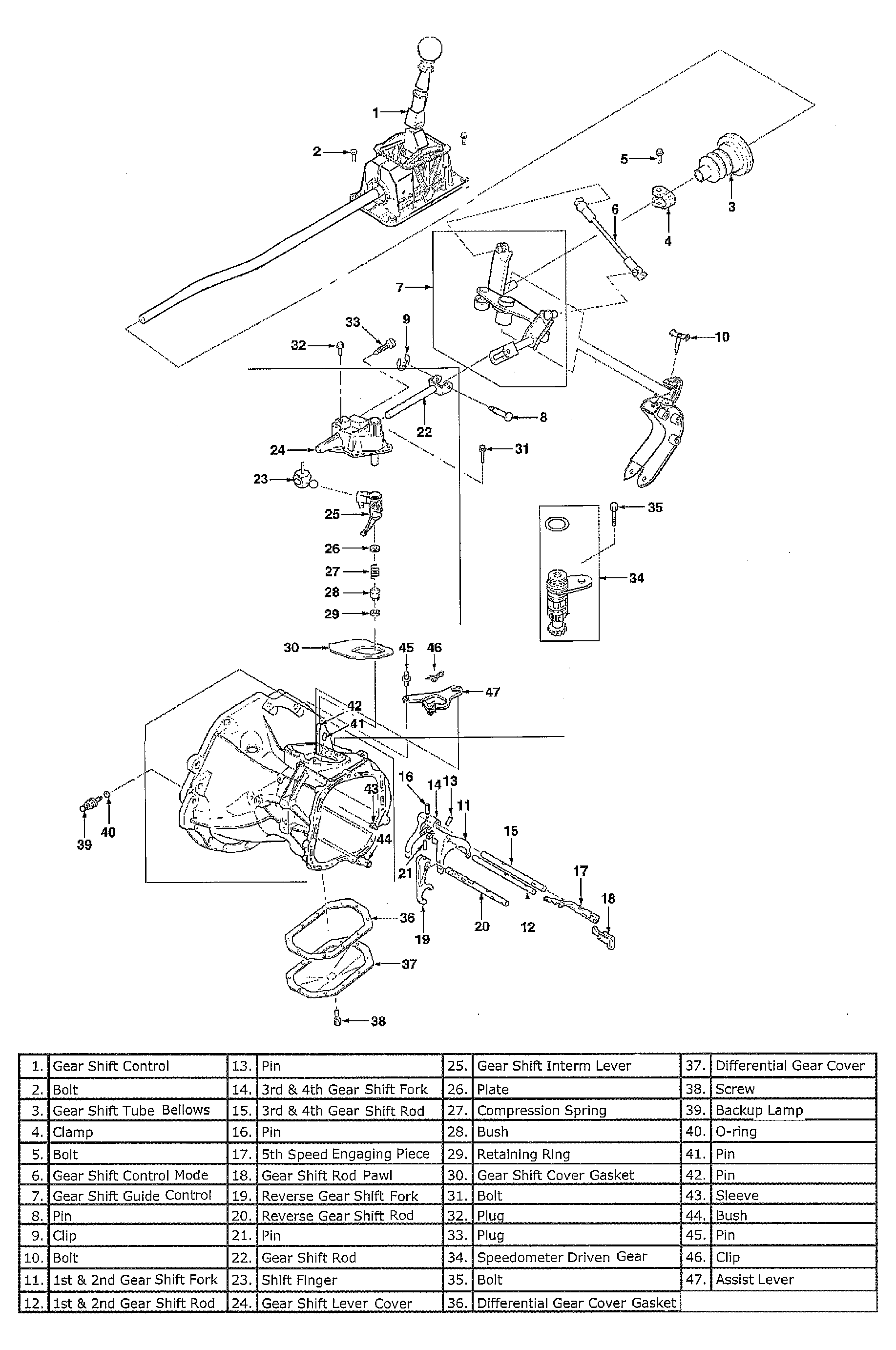

Fig 1: Identifying Shift Linkage Components (Type A)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Identifying Shift Linkage Components (Type B)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
