Transaxle Housing Components

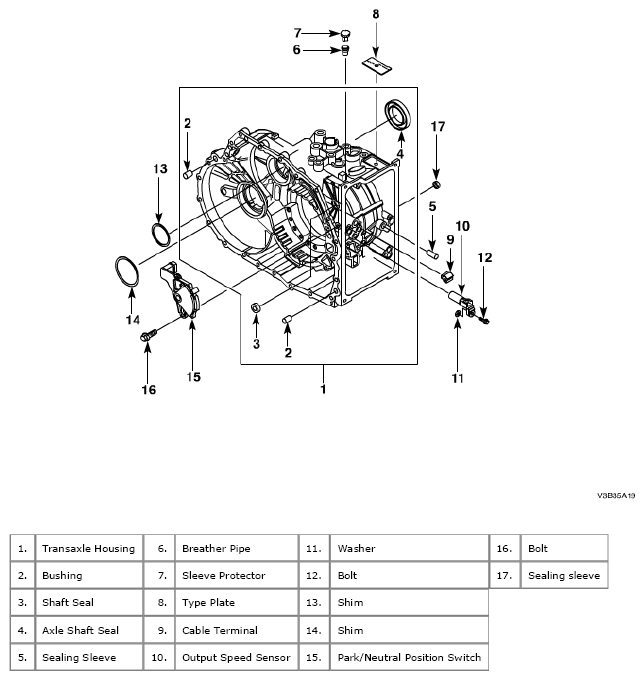

Fig 1: Exploded View Of Identifying Transaxle Housing Components

G04717233

Courtesy of SUZUKI OF AMERICA CORP.
