Oil Pump Components

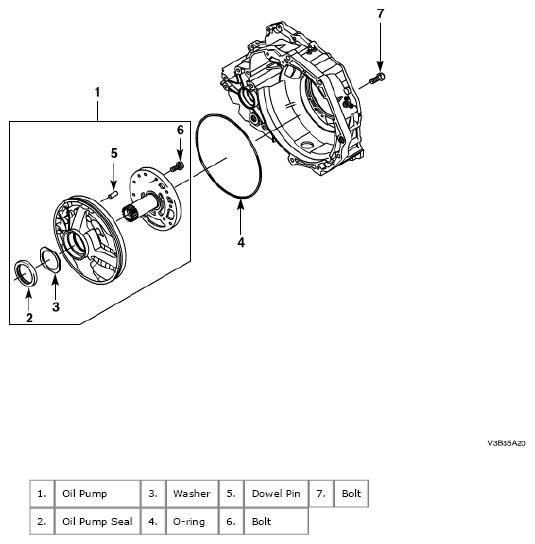

Fig 1: Exploded View Of Oil Pump Components

G04717234

Courtesy of SUZUKI OF AMERICA CORP.
