Front Strut Assembly Removal And Installation: Installation

Reference: FRONT STRUT ASSEMBLY CHECK

Install strut assembly by reversing removal procedure, noting the following instructions.

• Insert bolts in such direction as shown in figure.
• Tighten all fasteners to specified torque.

  Tightening torque

  Strut bracket nut a: 135 N.m (13.5 kg-m, 98.0 lb-ft)

  Brake hose mounting bolt c: 25 N.m (2.5 kg-m, 18.0 lb-ft)

  Stabilizer joint nut d: 60 N.m (6.0 kg-m, 43.5 lb-ft)

  Front wheel speed sensor harness clamp bolt e: 10 N.m (1.0 kg-m, 7.5 lb-ft)

• Lower hoist and vehicle in unloaded condition, tighten strut support nuts (b) to specified torque.

  Tightening torque

  Strut support nut b: 50 N.m (5.0 kg-m, 36.5 lb-ft)

  CAUTION: If reuse strut bracket bolt and nut, apply engine oil to thread, bearing and trunk surface.
  NOTE:

  • Don't twist brake hose and ABS wheel speed sensor harness (if equipped) when installing them.
  • Insert strut bracket bolt from vehicle forward.

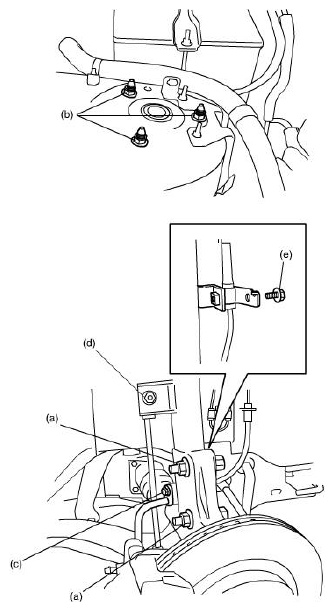

  Fig 1: Identifying Strut Support Nut

  Courtesy of SUZUKI OF AMERICA CORP.
• Tighten wheel nuts to specified torque.

  Tightening torque

  Wheel nut: 100 N.m (10.0 kg-m, 72.5 lb-ft)
