Clutch Operating Cylinder Components

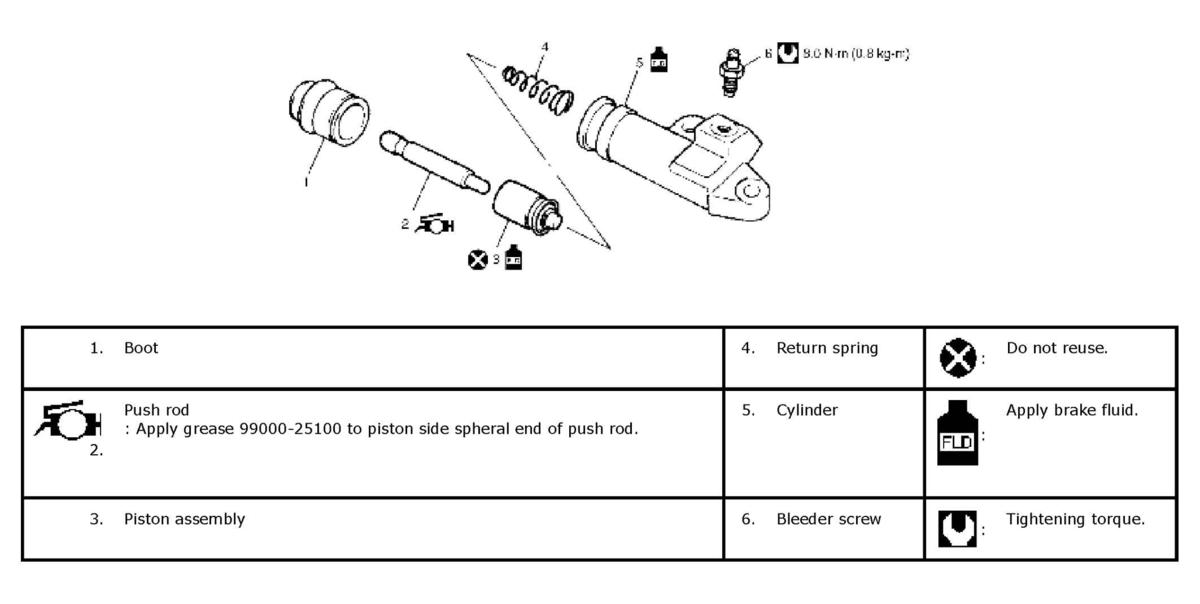

Fig 1: Identifying Clutch Operating Cylinder Components (With Tightening Torque)

G04592286

Courtesy of SUZUKI OF AMERICA CORP.
