2WD Model

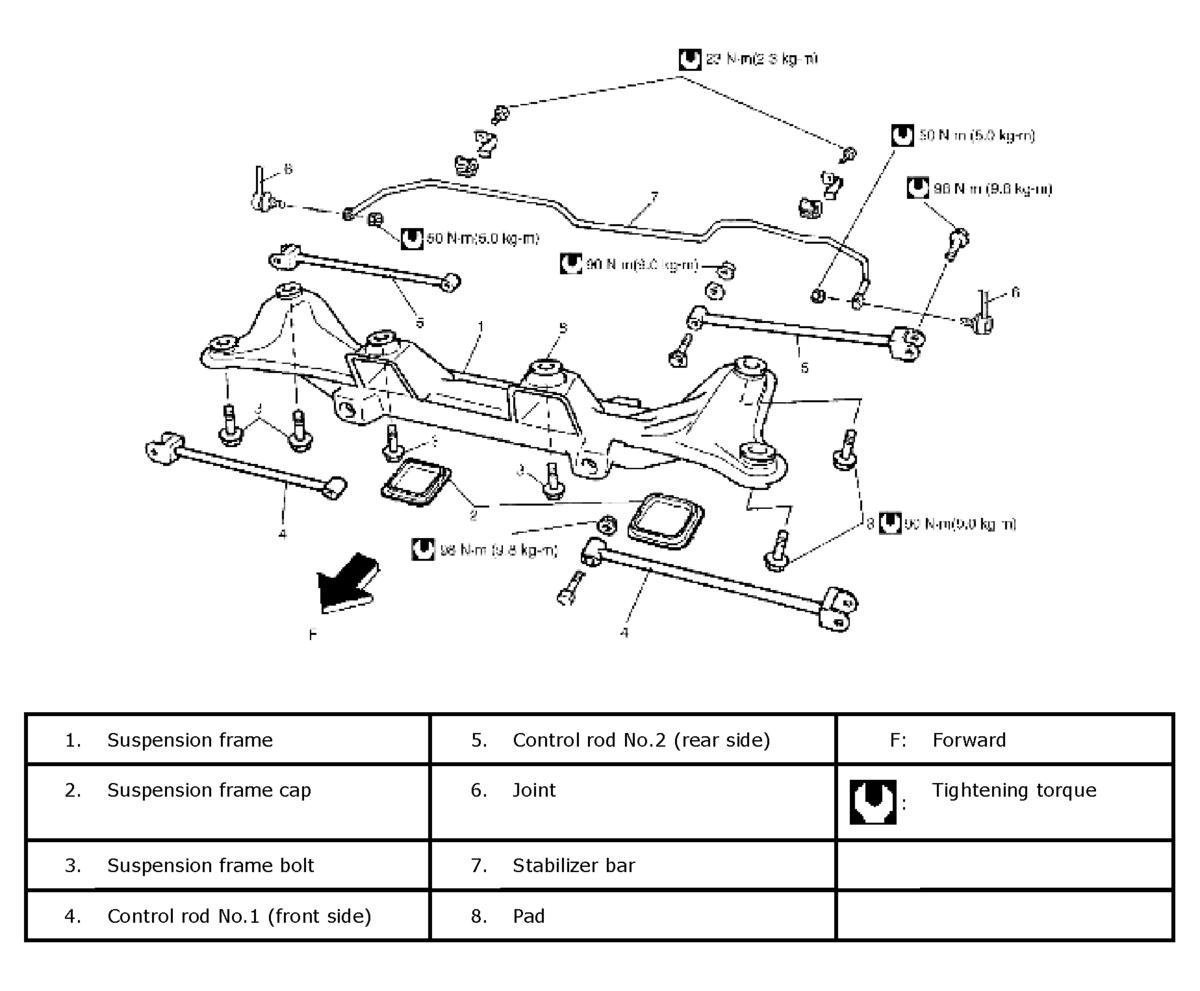

Fig 1: Identifying Rear Suspension Frame Components (2WD Model) (With Tightening Torques)

G04590209

Courtesy of SUZUKI OF AMERICA CORP.
