Steering Lock Assembly (Ignition Switch) Removal and Installation: Removal

  1. Remove steering column (1). Refer to STEERING COLUMN ASSEMBLY REMOVAL AND INSTALLATION .

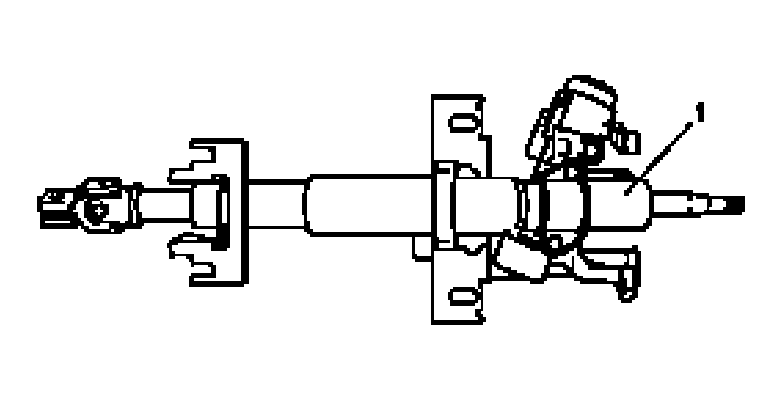

    Fig 1: Removing And Installing Of Steering Lock Assembly
    G04590706Courtesy of SUZUKI OF AMERICA CORP.
  2. Using center punch (1), loosen and remove steering lock mounting bolts (2).
    NOTE: Use care not to damage aluminum part of steering lock body with center punch.

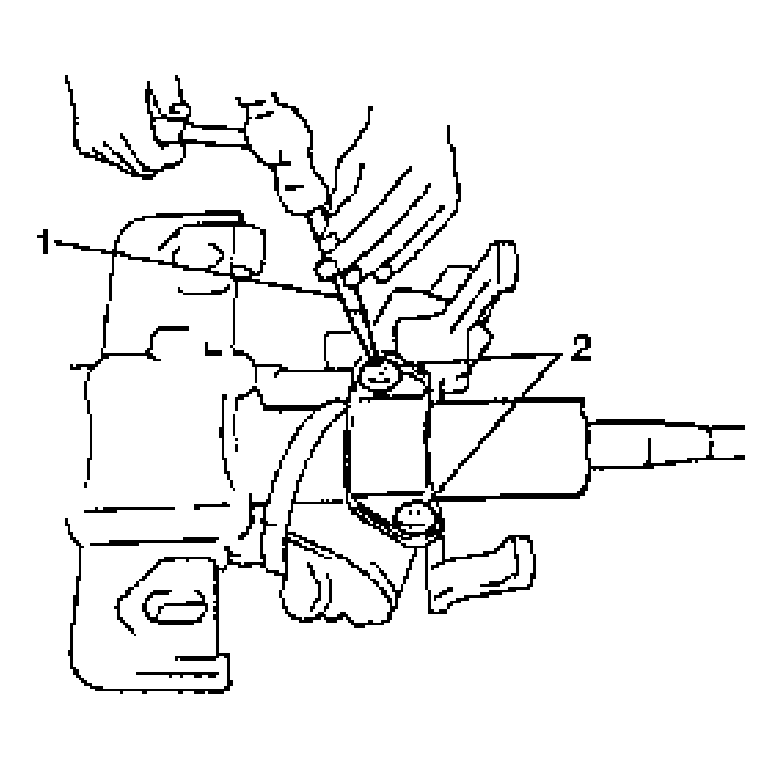

    Fig 2: Removing Steering Lock Mounting Bolts
    G04590707Courtesy of SUZUKI OF AMERICA CORP.
  3. Turn ignition key to "ACC" or "ON" position and remove steering lock assembly from steering column.
