DTC P0462/P0463: Fuel Level Sensor Circuit Low/High: Wiring Diagram

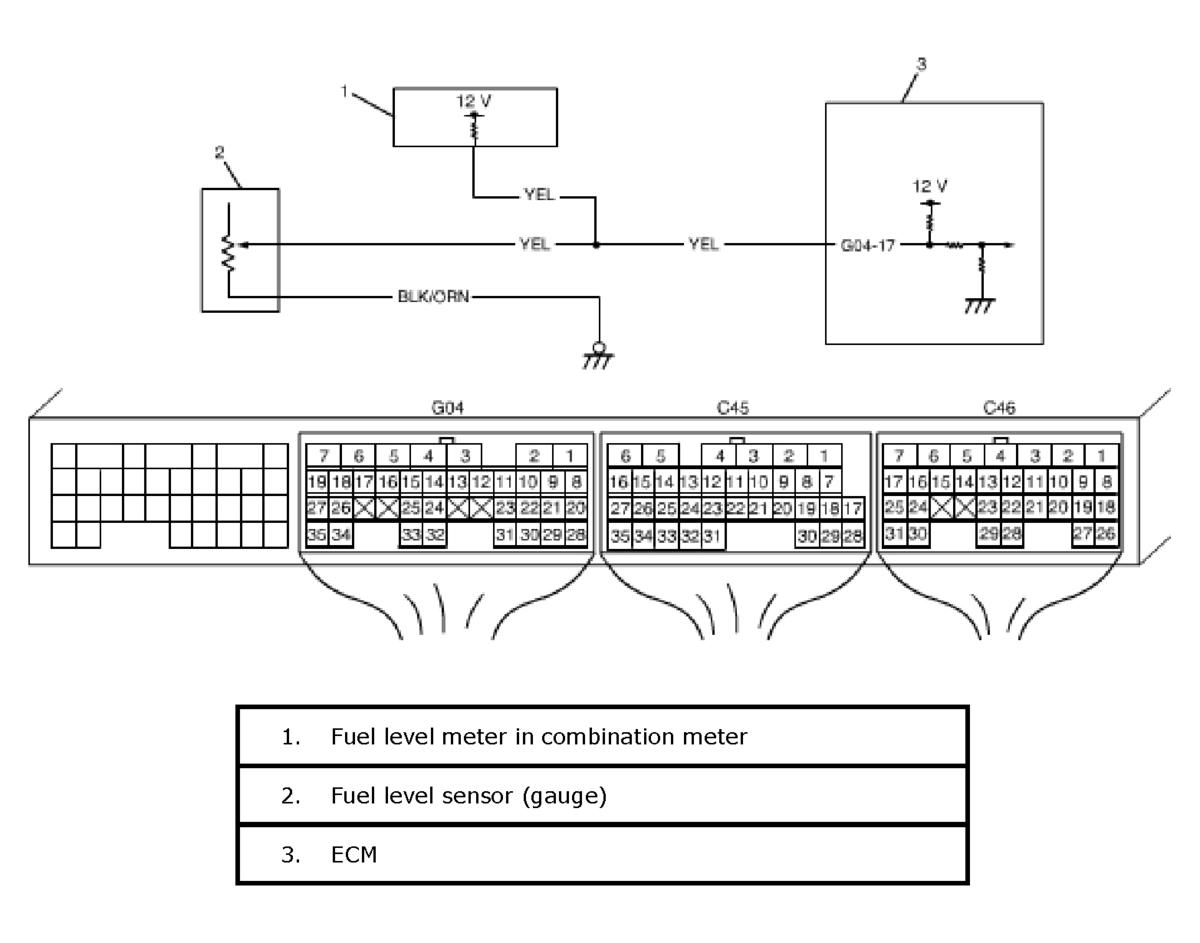

Fig 1: Fuel Level Sensor Circuit Low/High - Wiring Diagram

G04589480

Courtesy of SUZUKI OF AMERICA CORP.
