Rear Door Window Components
Rear Door Window Components

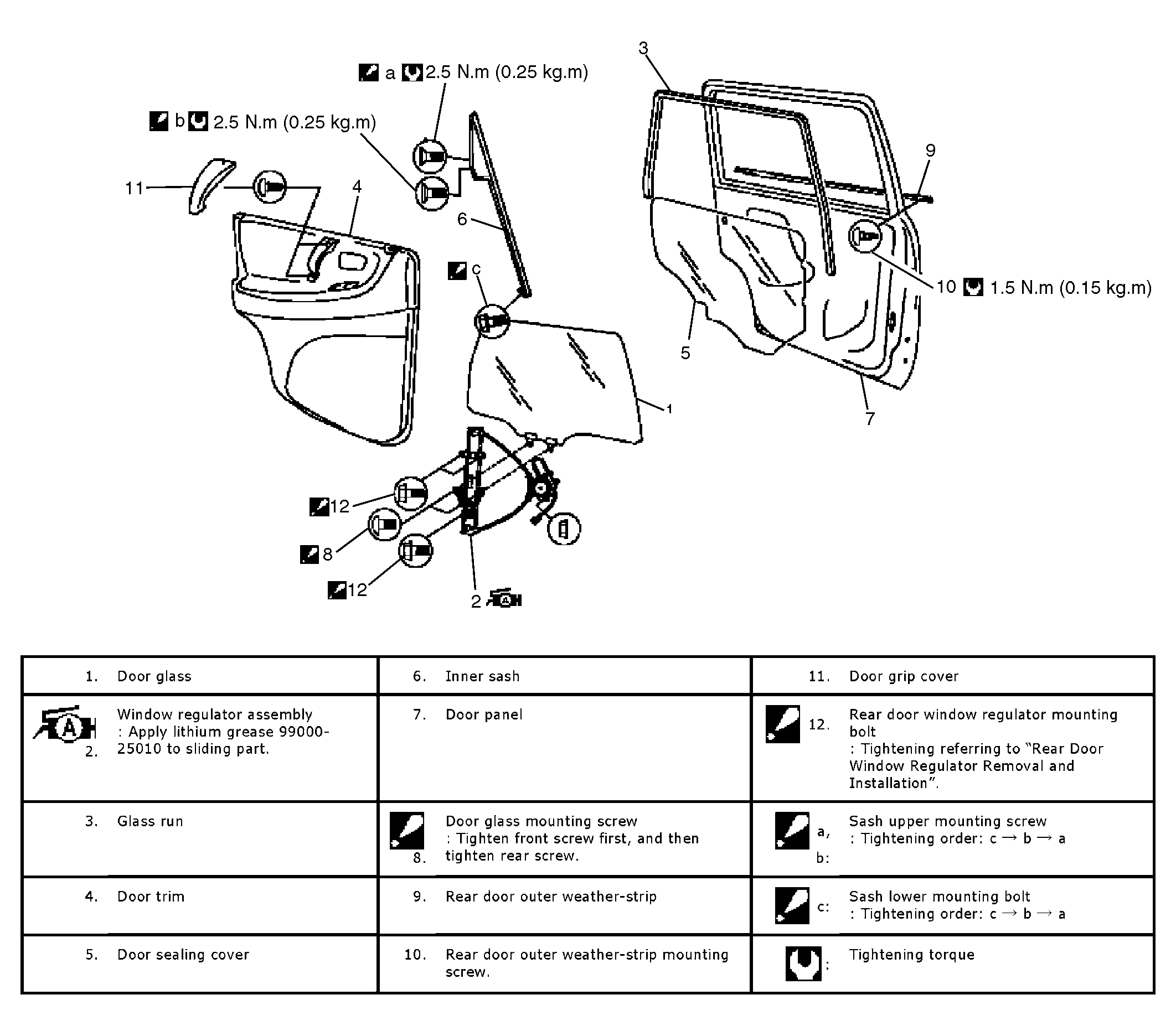

Fig 1: Removing Rear Door Window Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
