Contact Coil and Combination Switch Assembly Removal and Installation: Removal

  1. Remove steering wheel from steering column referring to STEERING WHEEL REMOVAL AND INSTALLATION .
  2. Remove steering column hole cover (1).

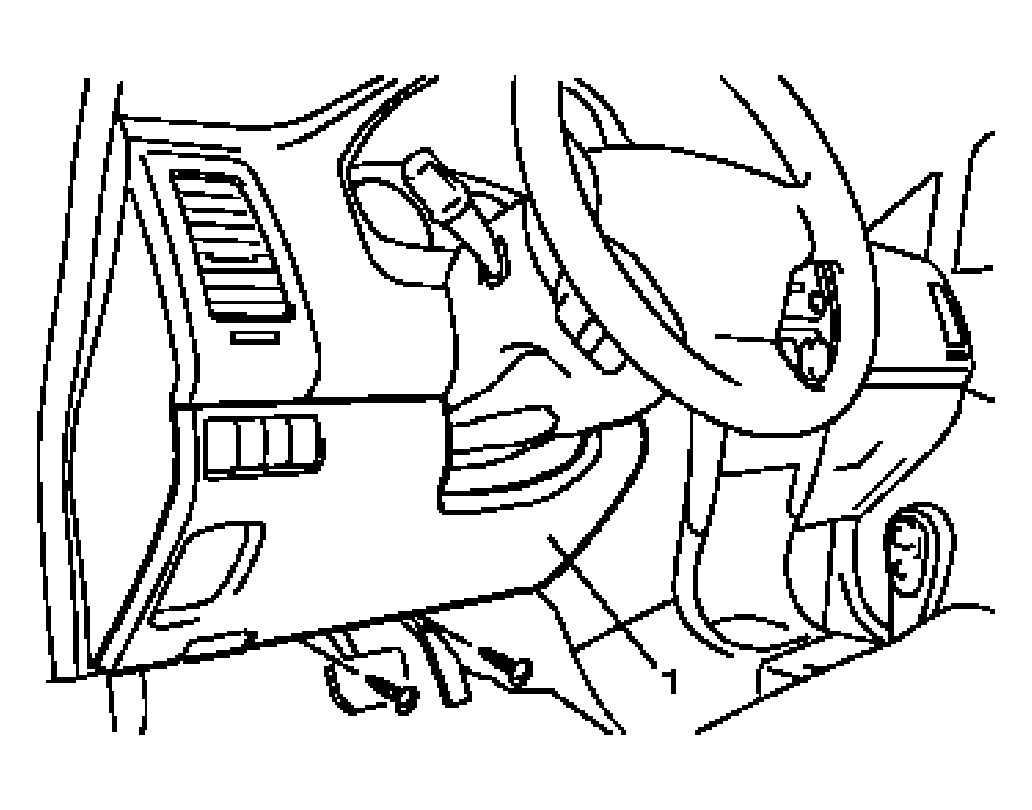

    Fig 1: Removing Steering Column Hole Cover
    G04590684Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove steering column cover screws (1).
  4. Separate upper cover (2) and lower cover (3), then remove them.

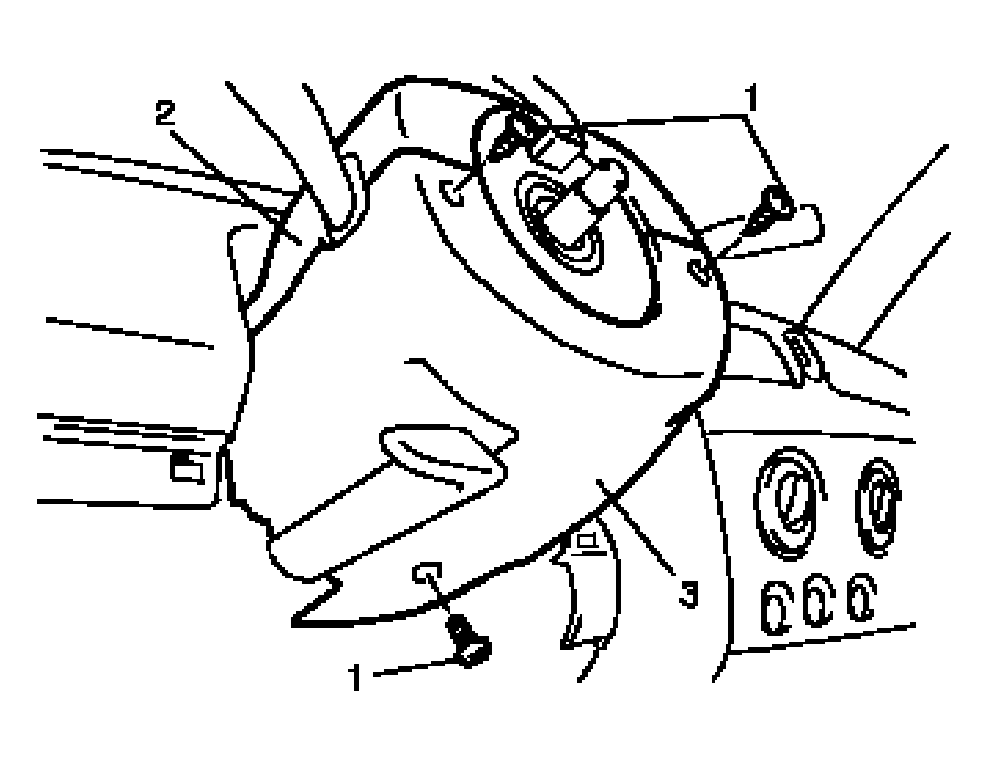

    Fig 2: Separating Upper Cover And Lower Cover
    G04590685Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove contact coil and combination switch assembly screws (1) and disconnect connectors (2) from combination switch (3).

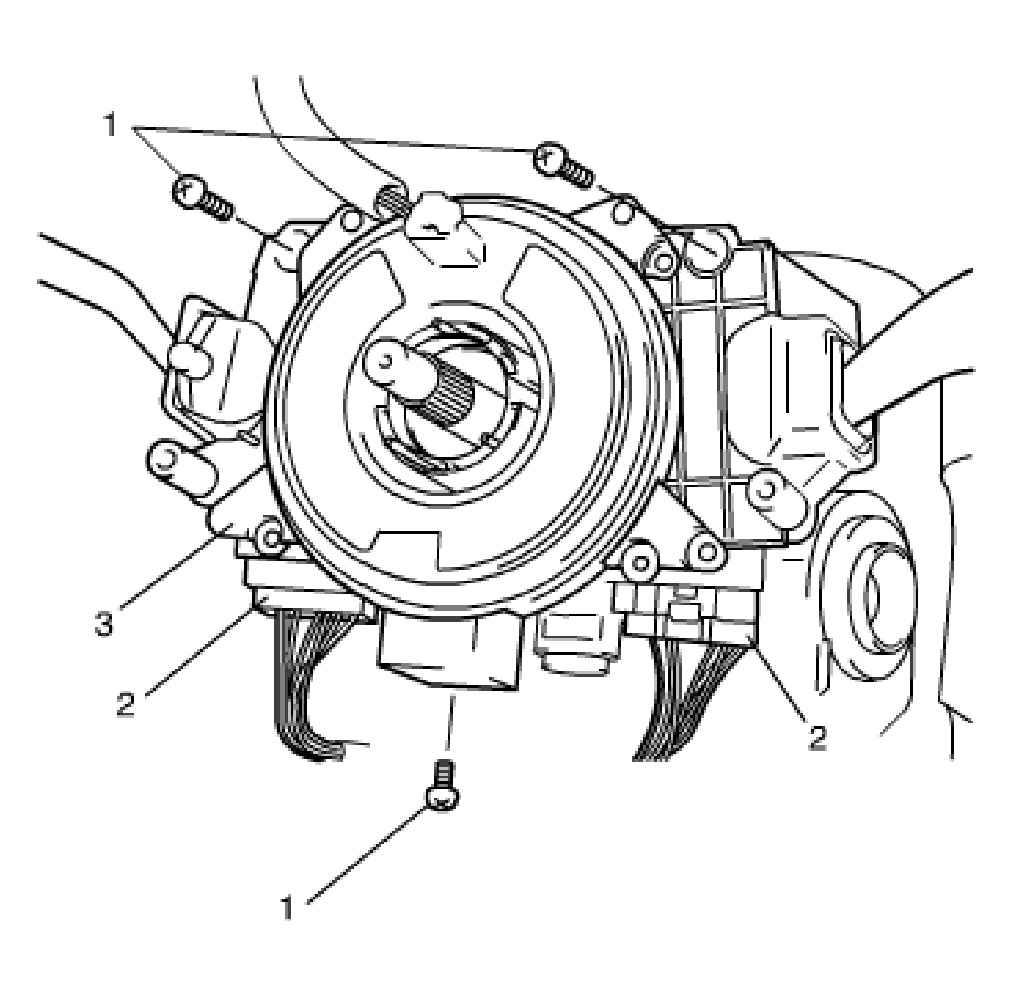

    Fig 3: Removing Contact Coil And Combination Switch Assembly Screws
    G04590686Courtesy of SUZUKI OF AMERICA CORP.
  6. Disconnect horn connector and air bag connector (1) from instrument panel harness.

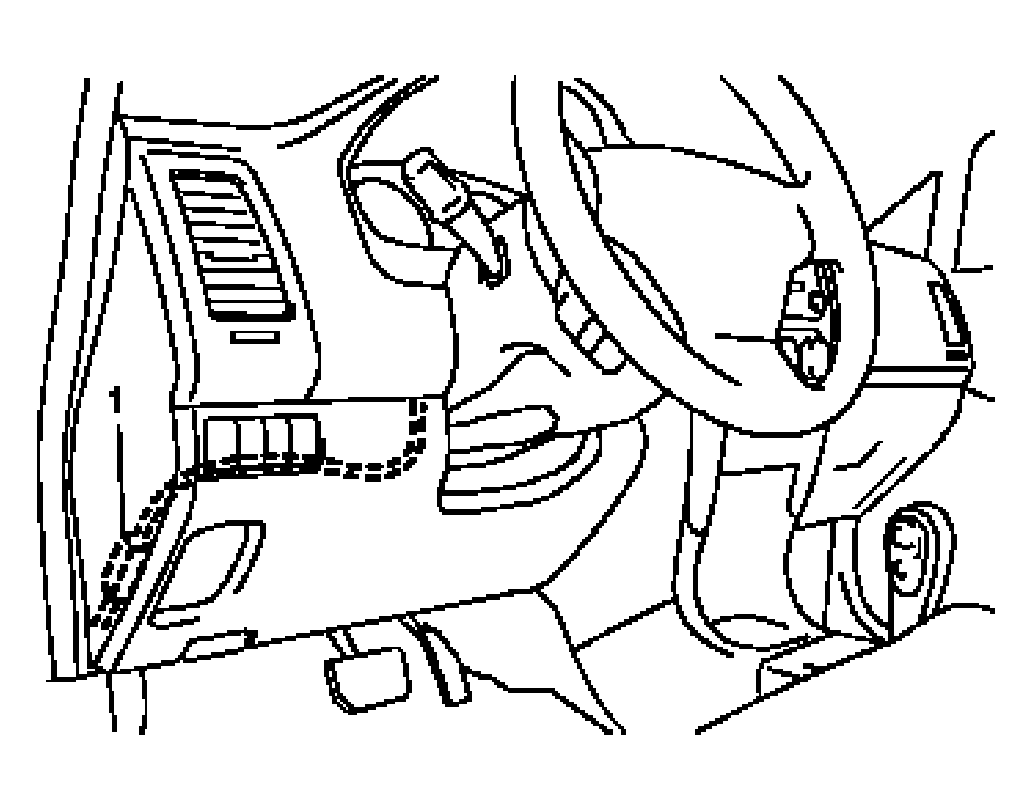

    Fig 4: Disconnecting Horn Connector And Air Bag Connector From Instrument Panel Harness
    G04590687Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove contact coil and combination switch assembly from steering column.
