For Quick Joint: Disconnecting

  1. Remove mud, dust and/or foreign material between pipe (1) and quick joint (fuel pipe) (2) by blowing compressed air.
  2. Unlock joint lock by inserting special tool between pipe and quick joint.

    Special Tool

    (A): 09919-47020

  3. Disconnect quick joint from pipe.

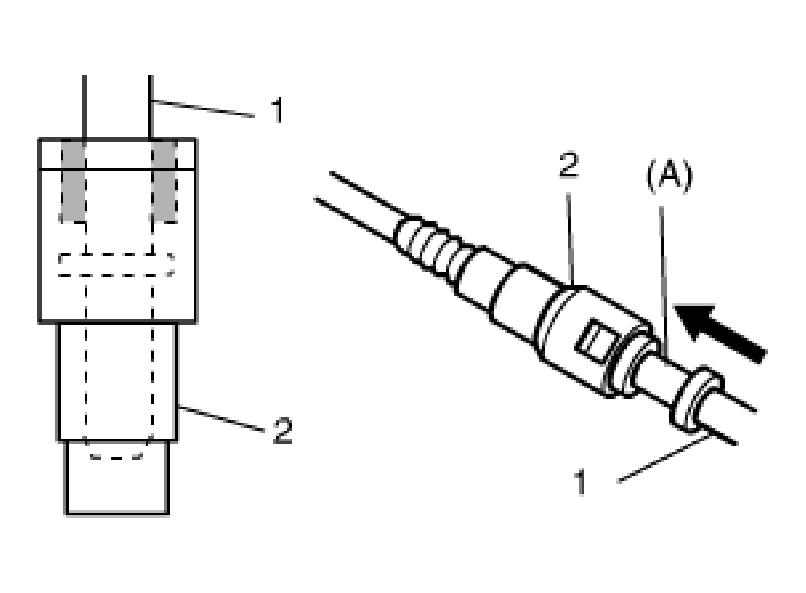

    Fig 1: Removing Mud, Dust And/Or Foreign Material Between Pipe And Quick Joint
    G04589978Courtesy of SUZUKI OF AMERICA CORP.
