Electric Load Signal Circuit Check: Wiring Diagram

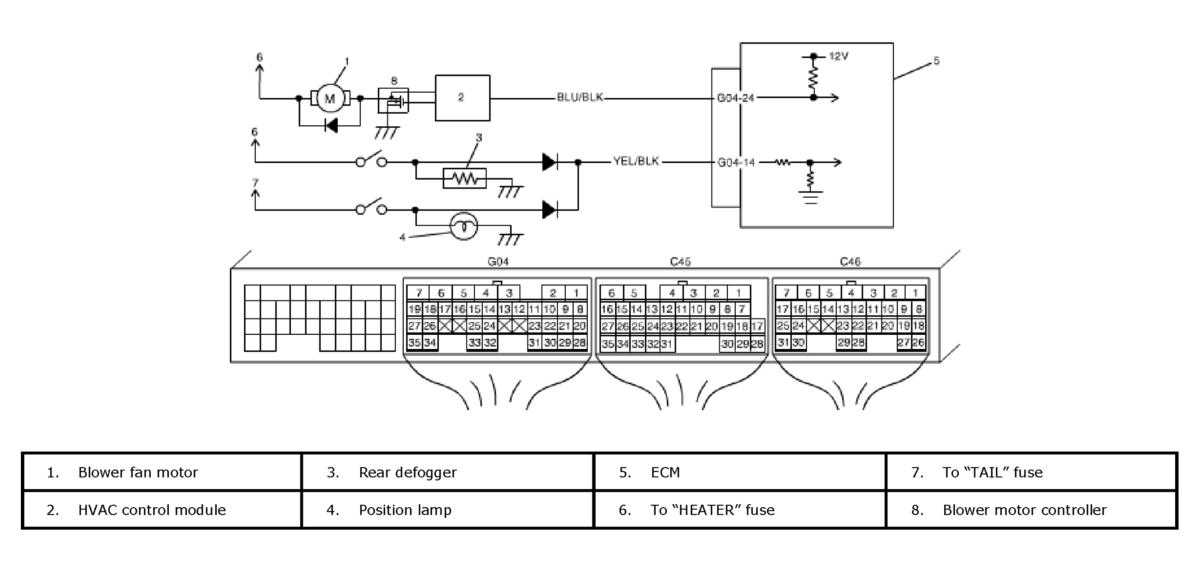

Fig 1: Electric Load Signal Circuit - Wiring Diagram

G04589561

Courtesy of SUZUKI OF AMERICA CORP.
