DTC P2400: Evaporative Emission System Leak Detection Pump Control Circuit / Open: Wiring Diagram

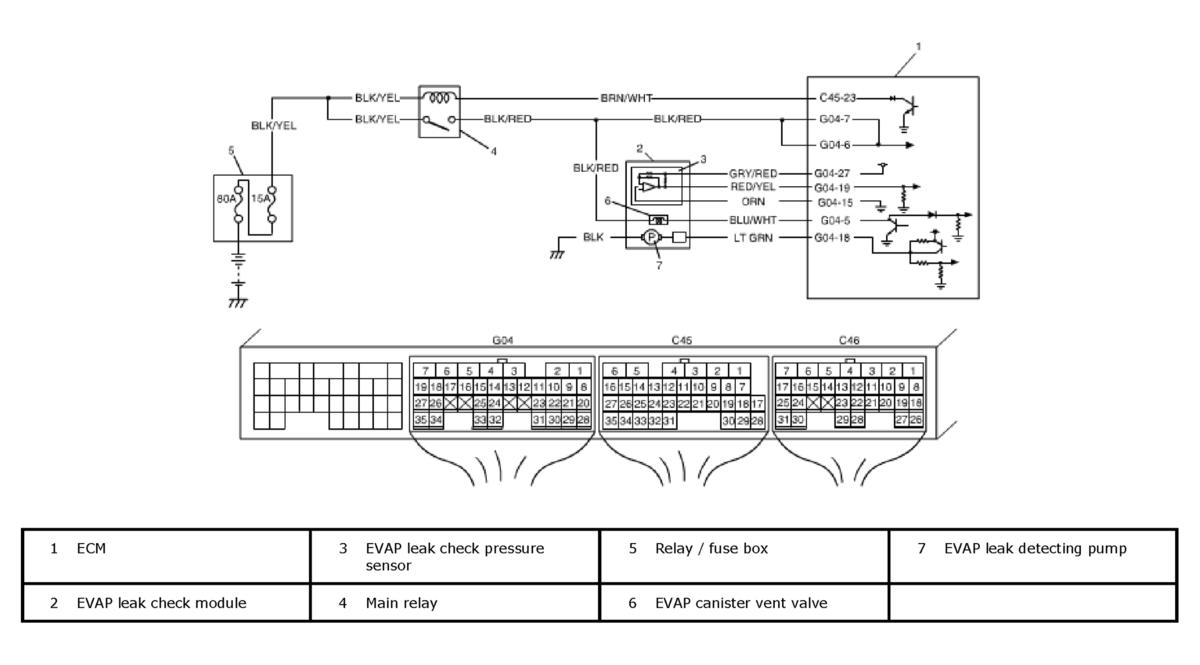

Fig 1: Evaporative Emission System Leak Detection Pump Control Circuit / Open - Wiring Diagram
G04589508Courtesy of SUZUKI OF AMERICA CORP.
