DTC P1600: Serial Communication Problem Between ECM and TCM: Wiring Diagram

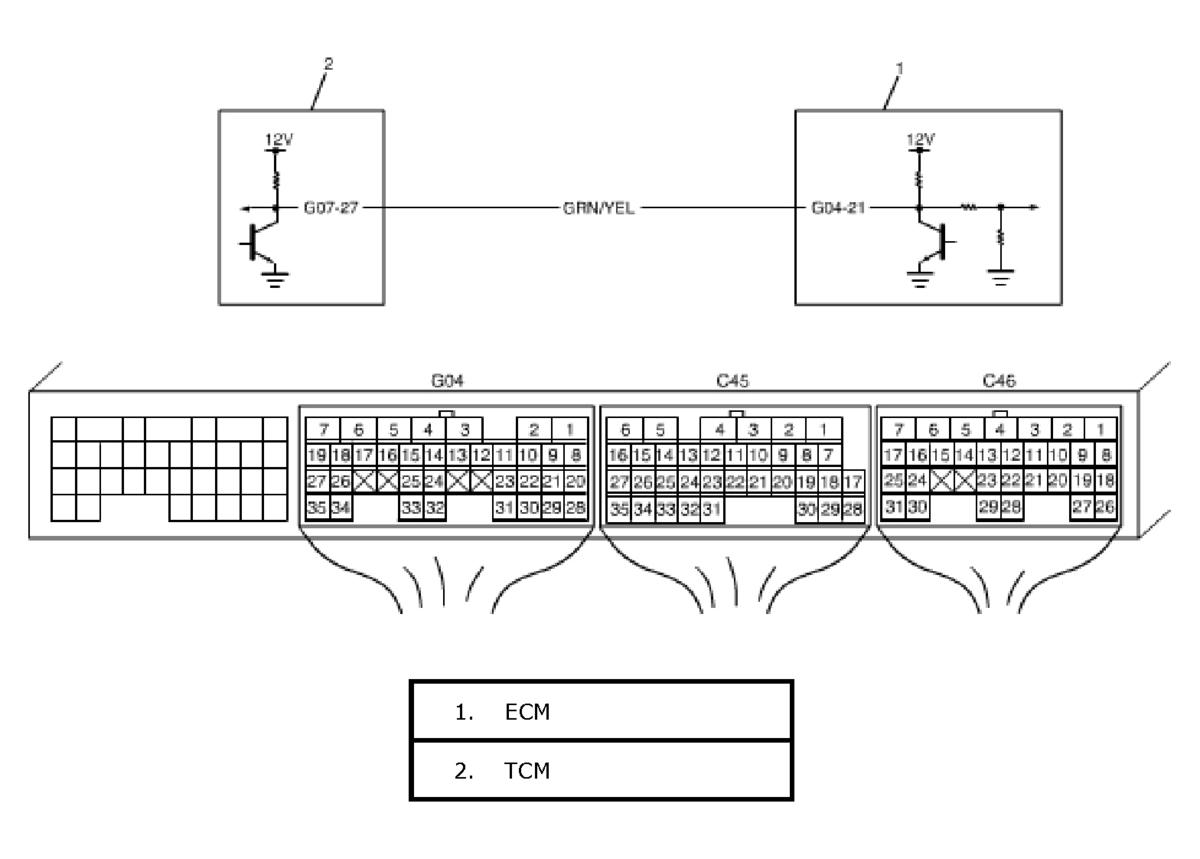

Fig 1: Serial Communication Problem Between ECM And TCM - Wiring Diagram

G04589506

Courtesy of SUZUKI OF AMERICA CORP.
