DTC P0464: Fuel Level Sensor Circuit Intermittent: Wiring Diagram

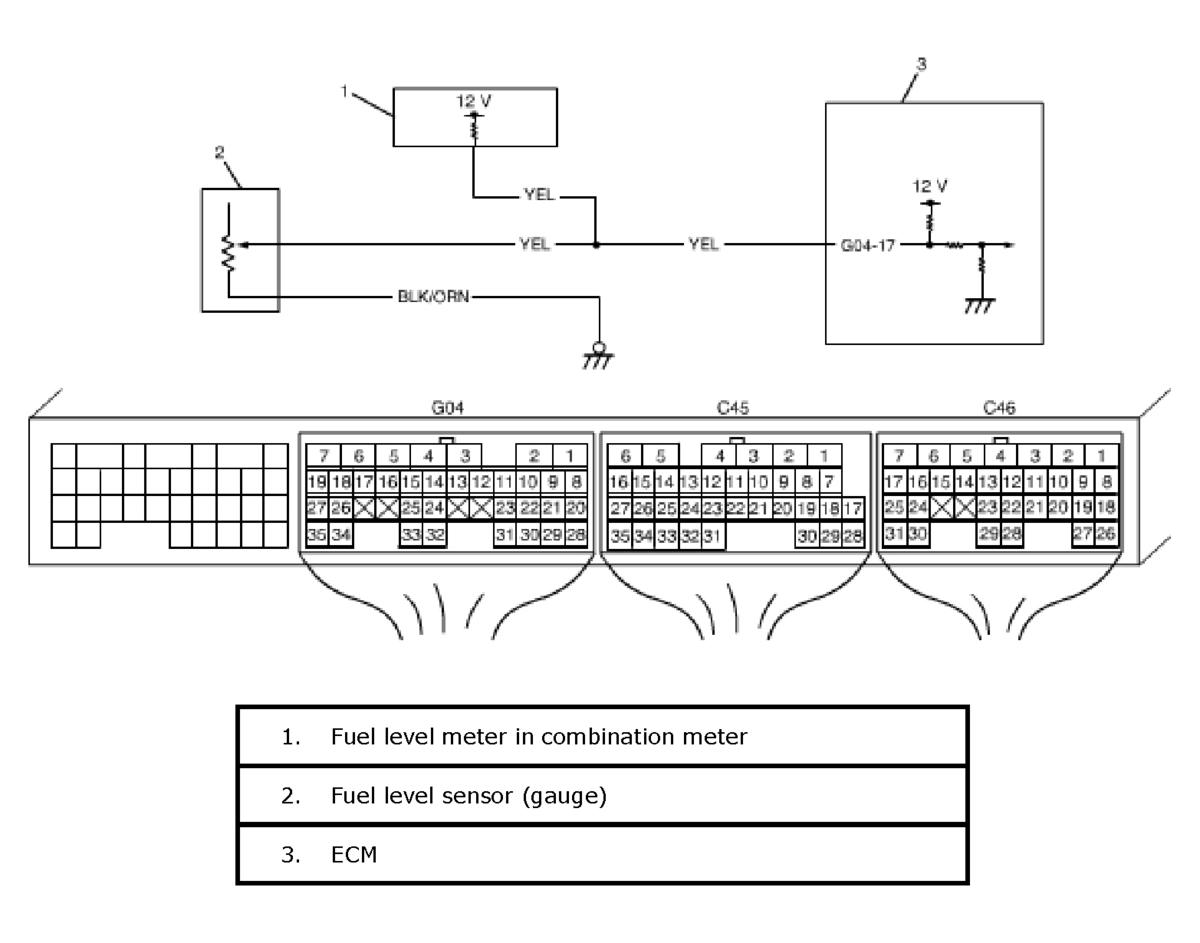

Fig 1: Fuel Level Sensor Circuit Intermittent - Wiring Diagram

G04589481

Courtesy of SUZUKI OF AMERICA CORP.
