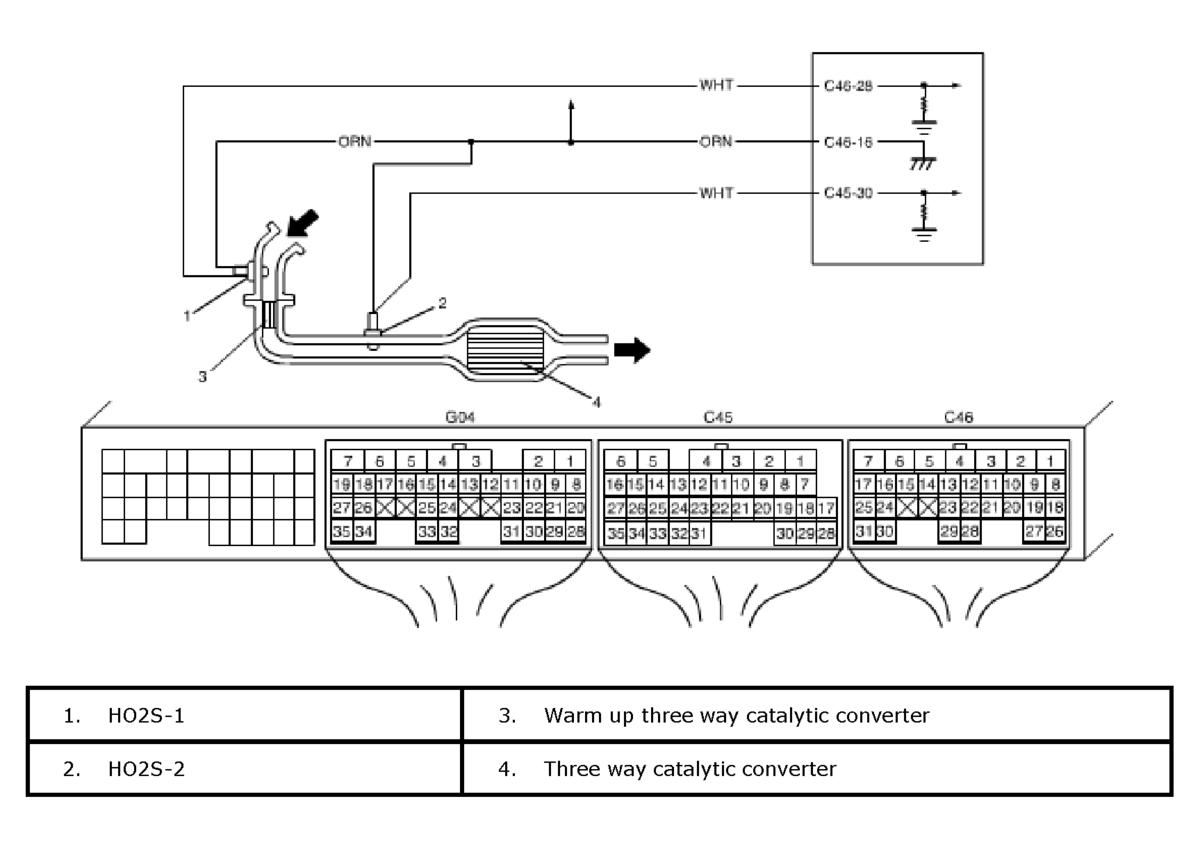

Home >> Suzuki >> 2007 >> Aerio Base, FWD, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information And Diagnosis >> Diagnostic Information and Procedures >> DTC P0420: Catalyst System Efficiency below Threshold >> System / Wiring Diagram
