DTC P0403: Exhaust Gas Recirculation Control Circuit: Wiring Diagram

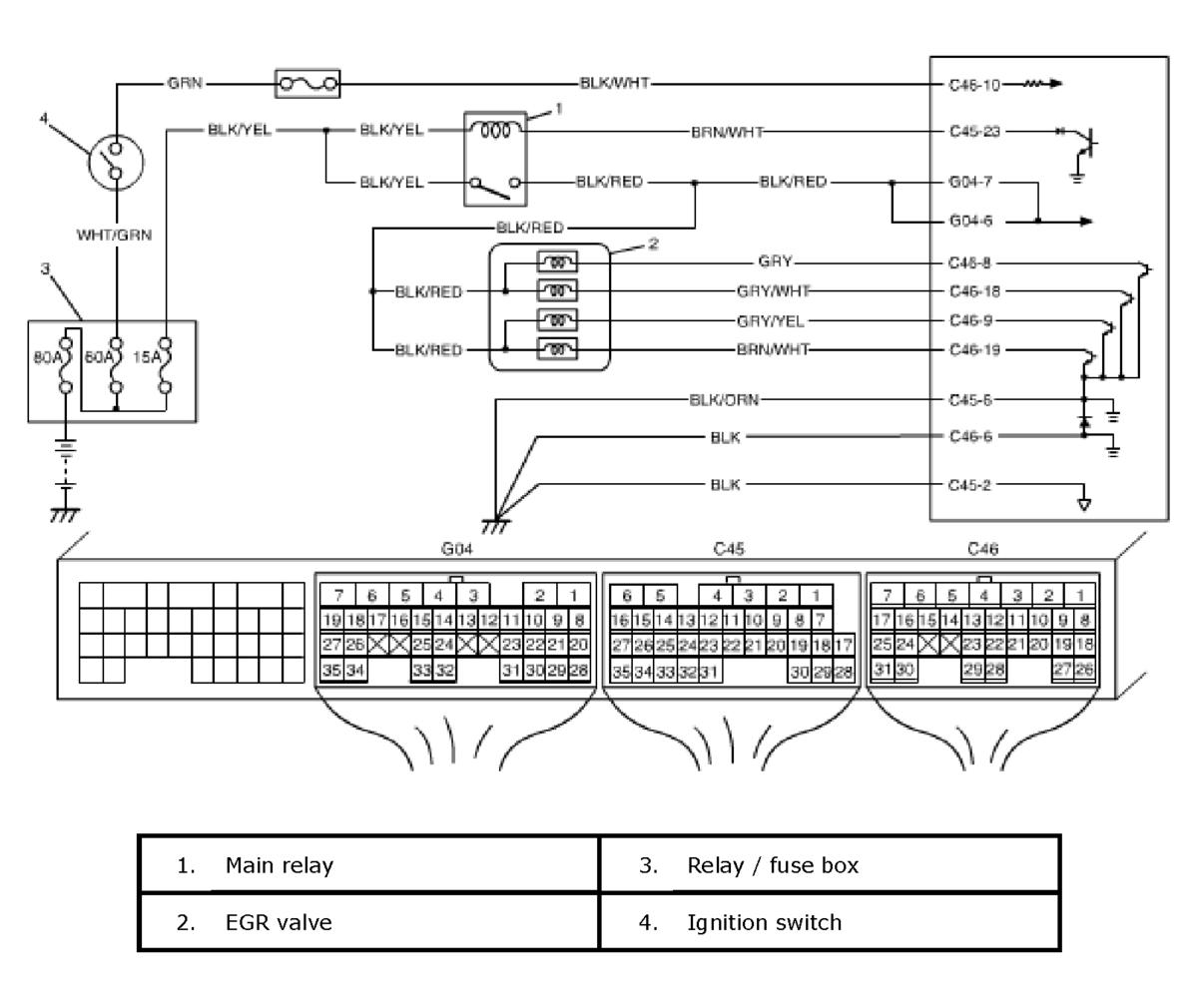

Fig 1: Exhaust Gas Recirculation Control Circuit - Wiring Diagram

G04589472

Courtesy of SUZUKI OF AMERICA CORP.
