DTC P0111: Intake Air Temperature Circuit Range / Performance: Wiring Diagram

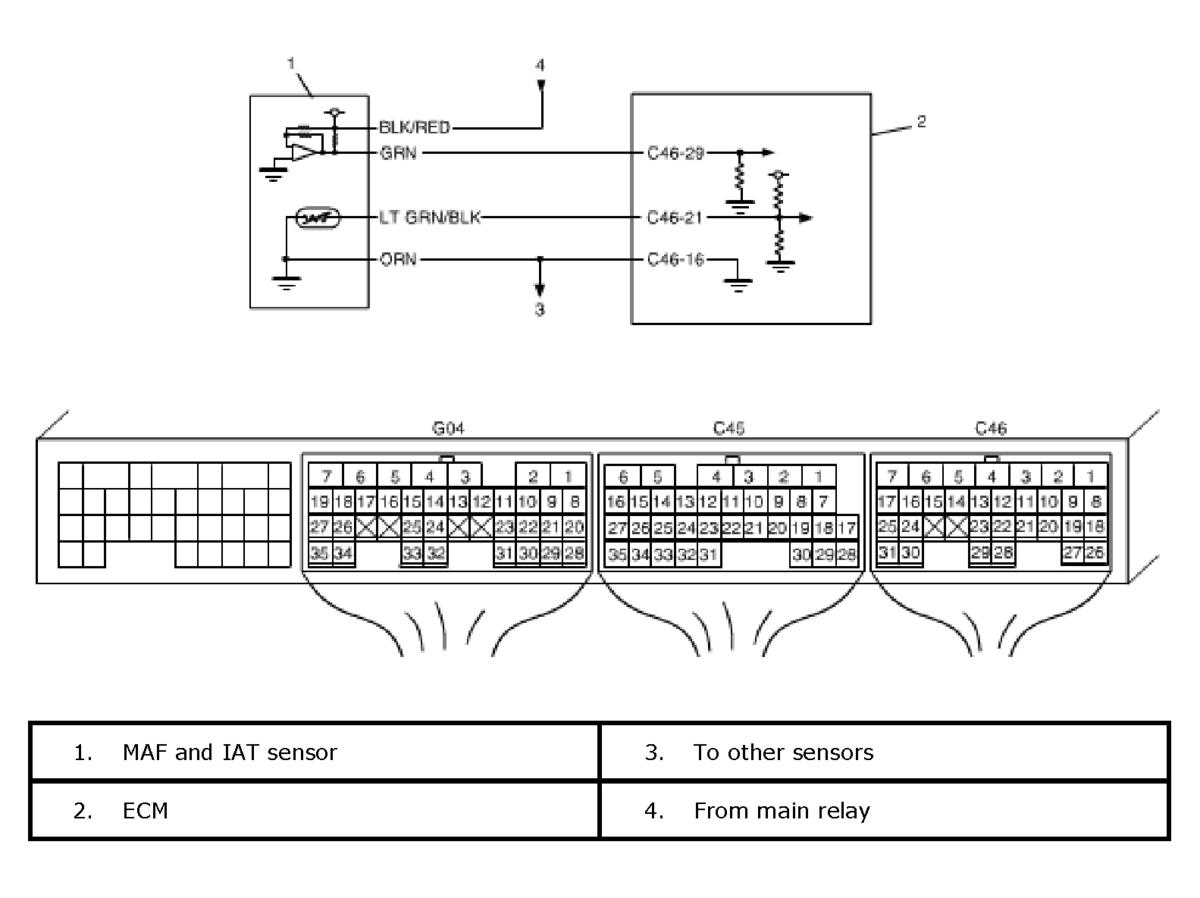

Fig 1: Intake Air Temperature Circuit Range / Performance - Wiring Diagram

G04589432

Courtesy of SUZUKI OF AMERICA CORP.
