Transfer Output Retainer Assembly Disassembly and Assembly: Disassembly

Uncaulk transfer output flange nut.

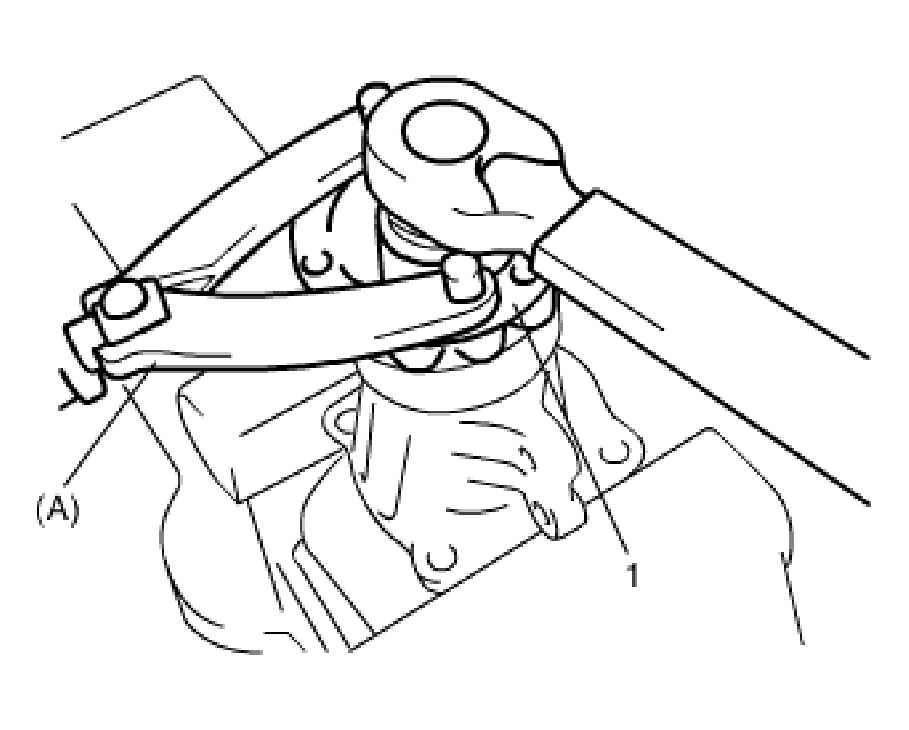

Remove transfer output flange nut while holding flange (1) by using special tool.
Special Tool
1. 09930-40113

  Fig 1: Removing Transfer Output Flange Nut
  Courtesy of SUZUKI OF AMERICA CORP.

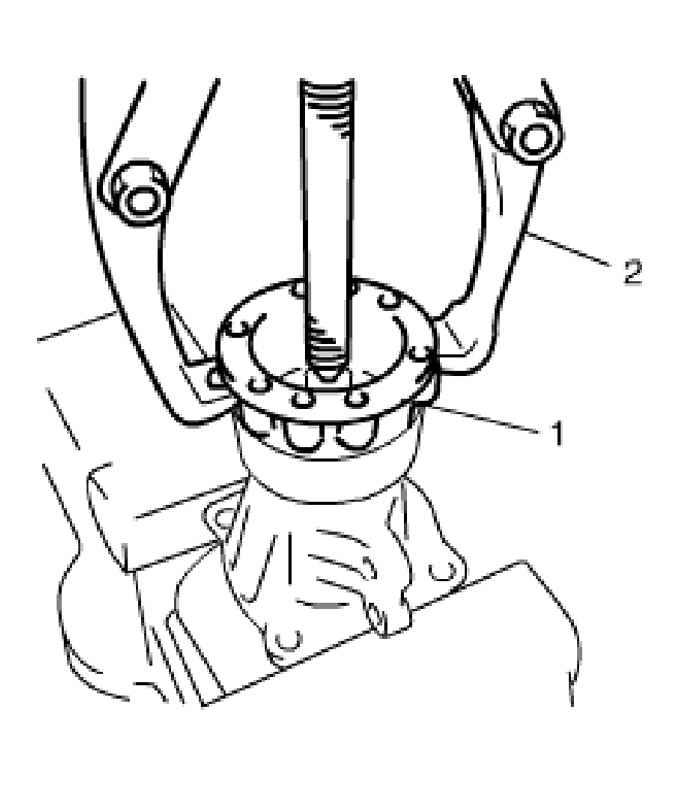

Remove transfer output flange (1) by bearing puller (2).

Fig 2: Removing Transfer Output Flange
Courtesy of SUZUKI OF AMERICA CORP.

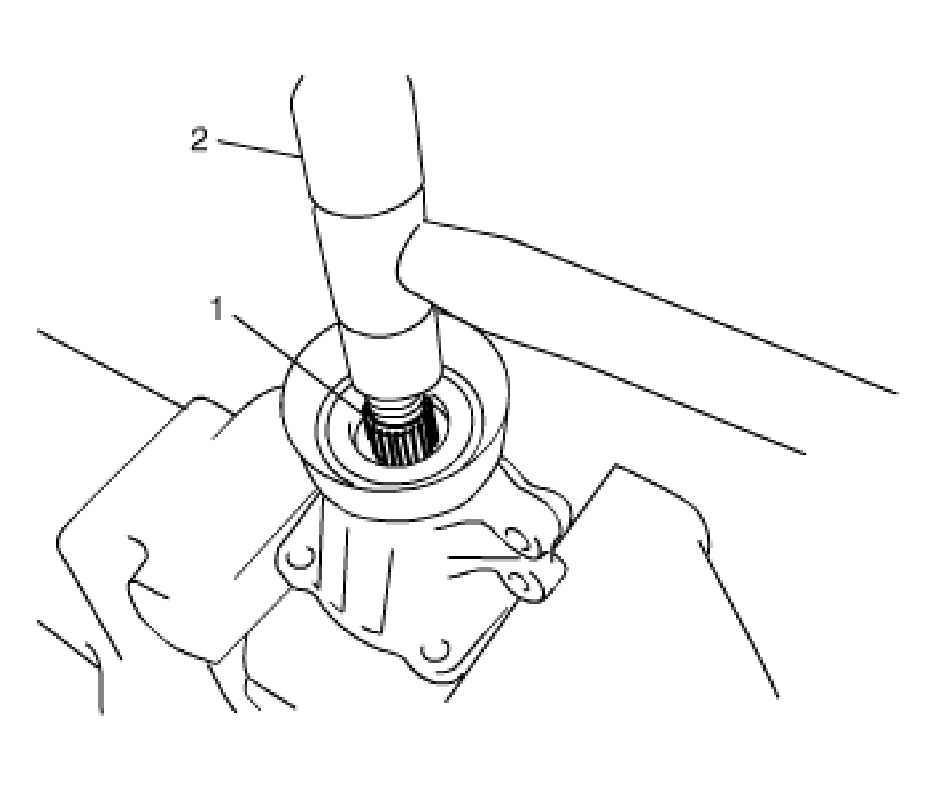

Drive out bevel pinion shaft (1) from transfer output retainer by tapping it with plastic hammer (2).

Fig 3: Removing Bevel Pinion Shaft From Transfer Output Retainer
Courtesy of SUZUKI OF AMERICA CORP.
Drive out pinion shaft bearing from bevel pinion shaft by using bearing puller and hydraulic press.

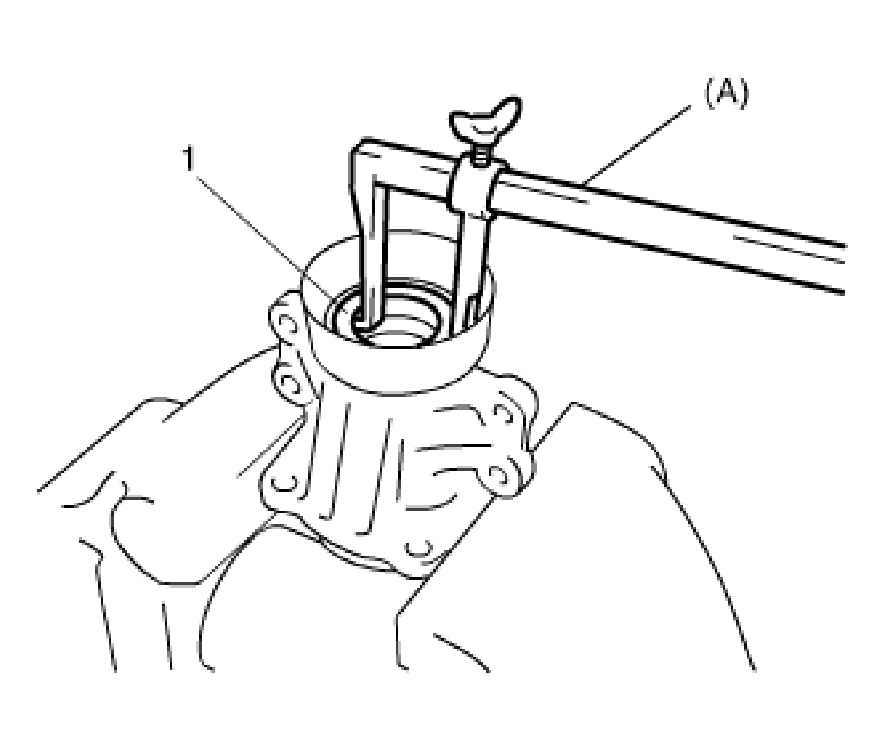

Remove pinion shaft oil seal (1) by using special tool.
Special Tool
1. 09913-50121

  Fig 4: Removing Pinion Shaft Oil Seal
  Courtesy of SUZUKI OF AMERICA CORP.

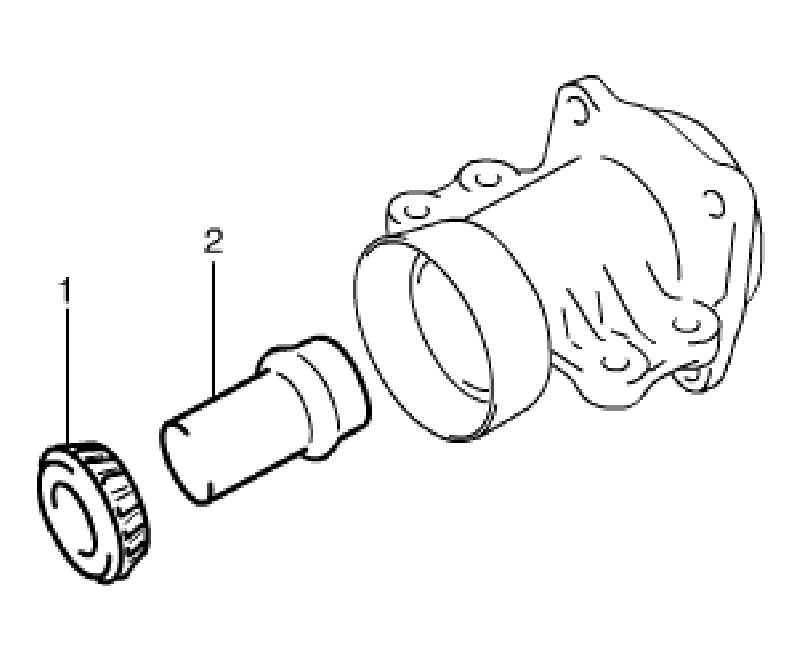

Remove pinion shaft rear taper roller bearing (1) and spacer (2).

Fig 5: Removing Pinion Shaft Rear Taper Roller Bearing And Spacer
Courtesy of SUZUKI OF AMERICA CORP.

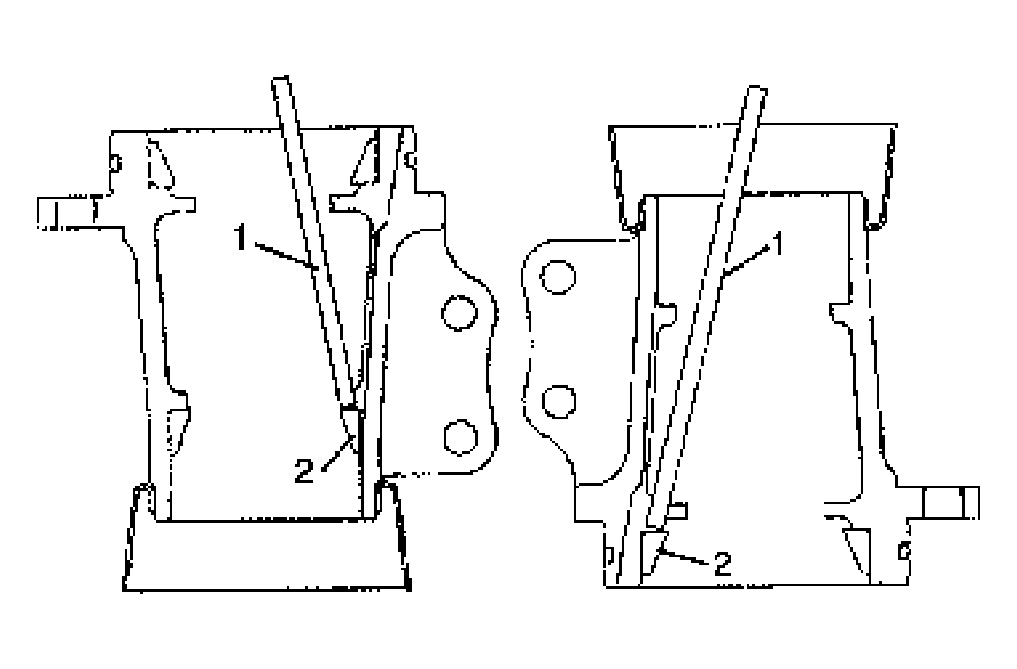

Drive out pinion shaft taper roller bearing outer races (2) (front and rear) by using brass bar (1).

Fig 6: Removing Pinion Shaft Taper Roller Bearing Outer Races
Courtesy of SUZUKI OF AMERICA CORP.
