Underdrive Gear Assembly Components

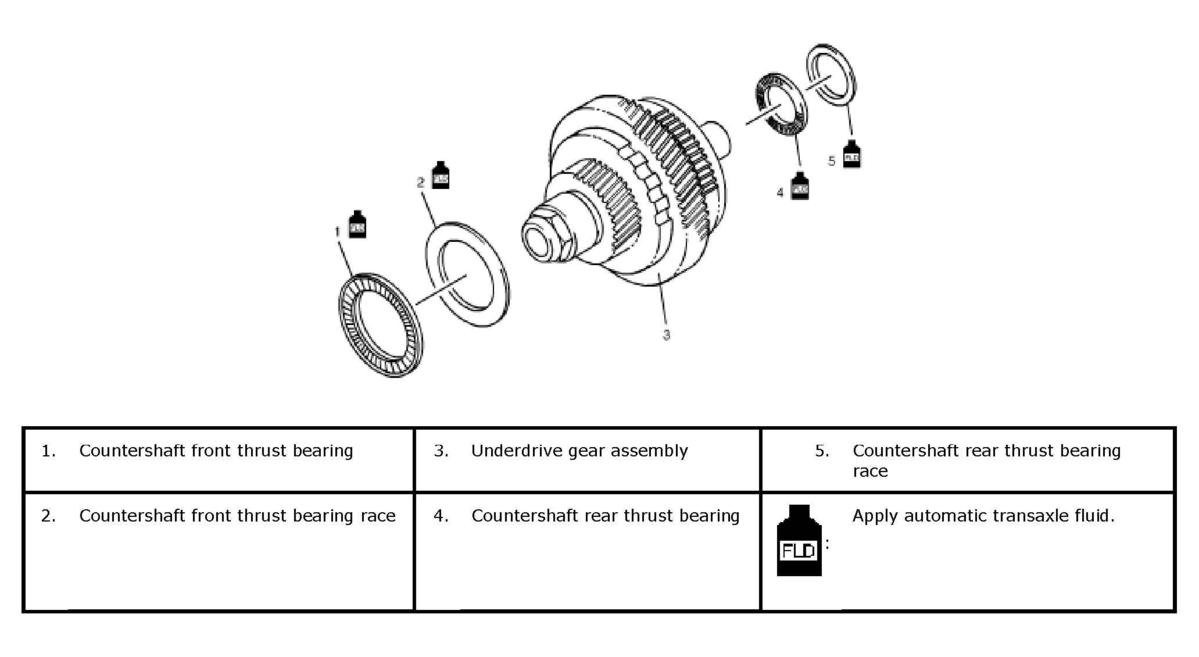

Fig 1: Identifying Underdrive Gear Assembly Components

G04592052

Courtesy of SUZUKI OF AMERICA CORP.
