Transaxle Rear Cover Components

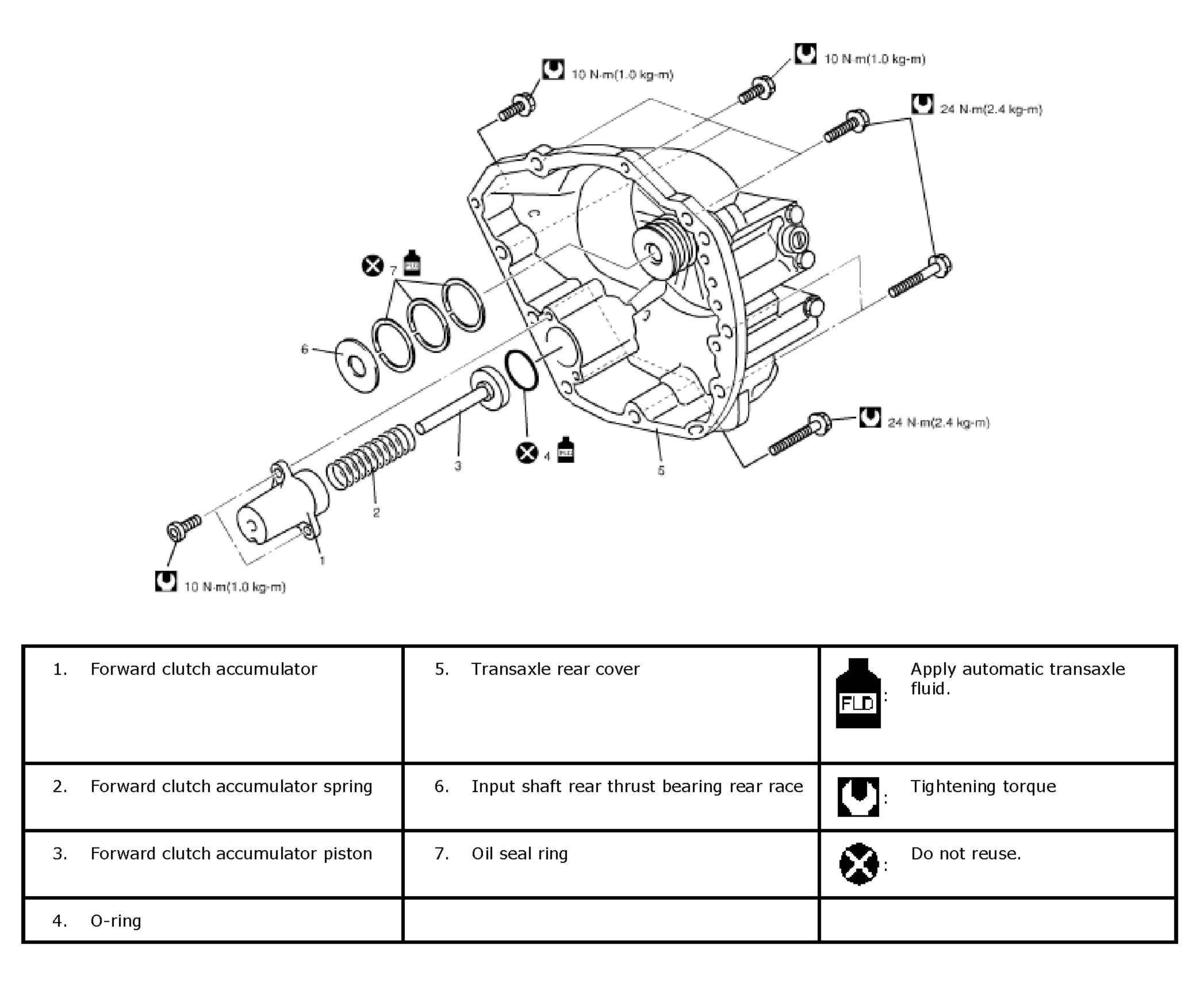

Fig 1: Identifying Transaxle Rear Cover Components With Tightening Torques

G04592066

Courtesy of SUZUKI OF AMERICA CORP.
