LEMON Manuals
: Even more car manuals for everyone
Home
>>
Suzuki
>>
2007
>>
Aerio Base, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Repair Instructions
>>
Planetary Gear Components
Planetary Gear Components

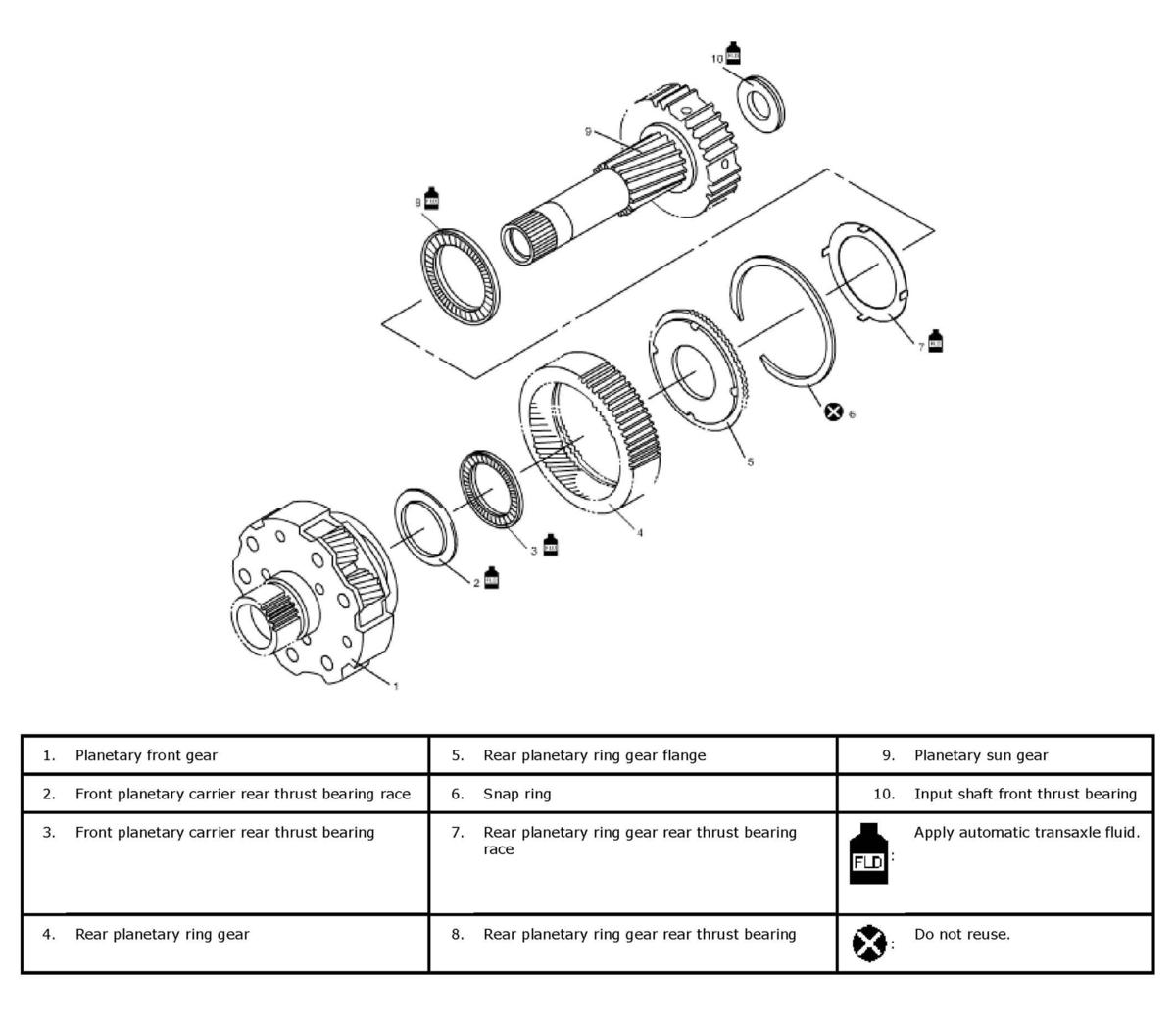

Fig 1: Identifying Planetary Gear Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
