A/T Description: 4WD

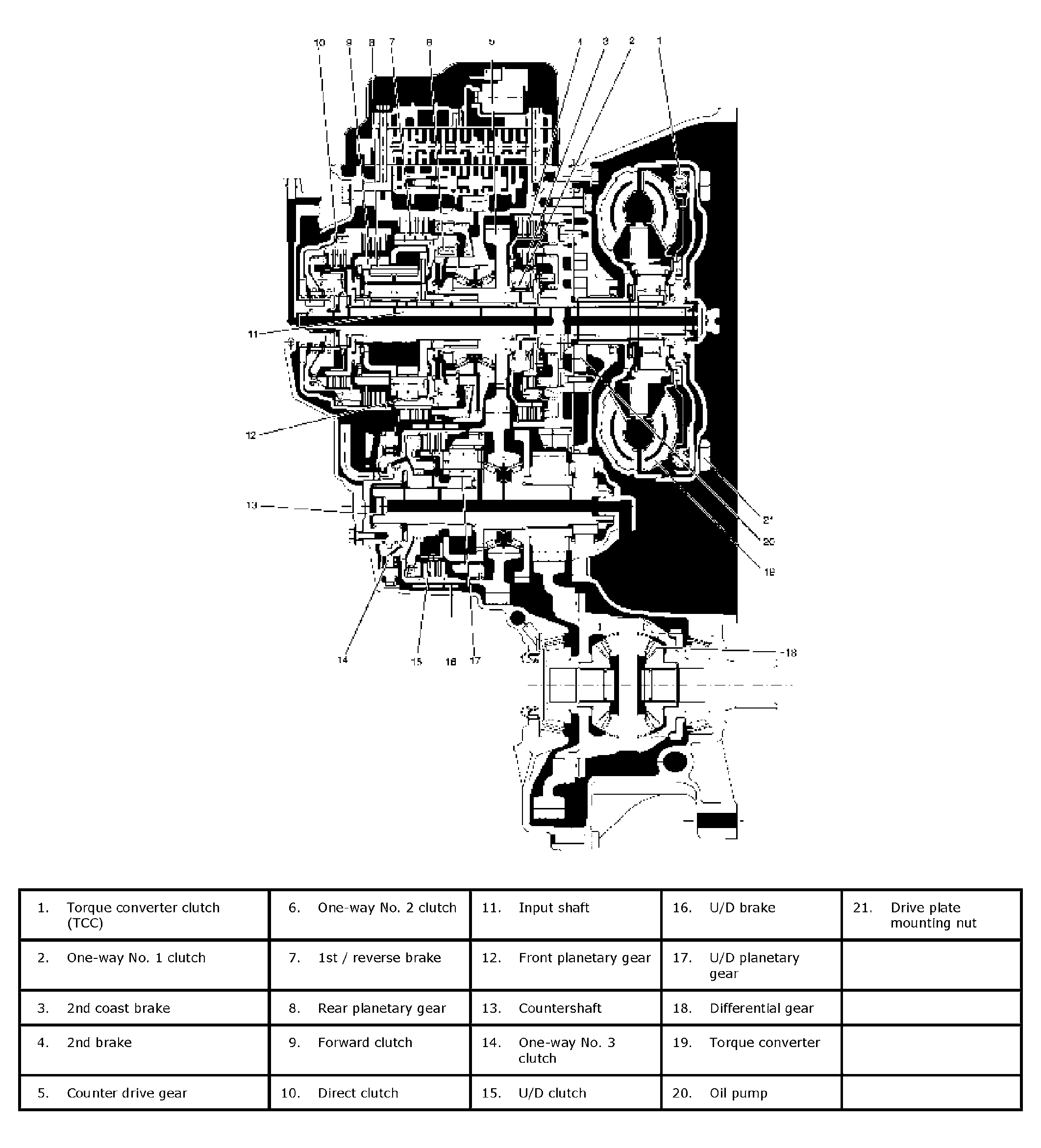

Fig 1: Sectional View Of A/T (4WD)

G04591800

Courtesy of SUZUKI OF AMERICA CORP.
