A/T Description: 2WD

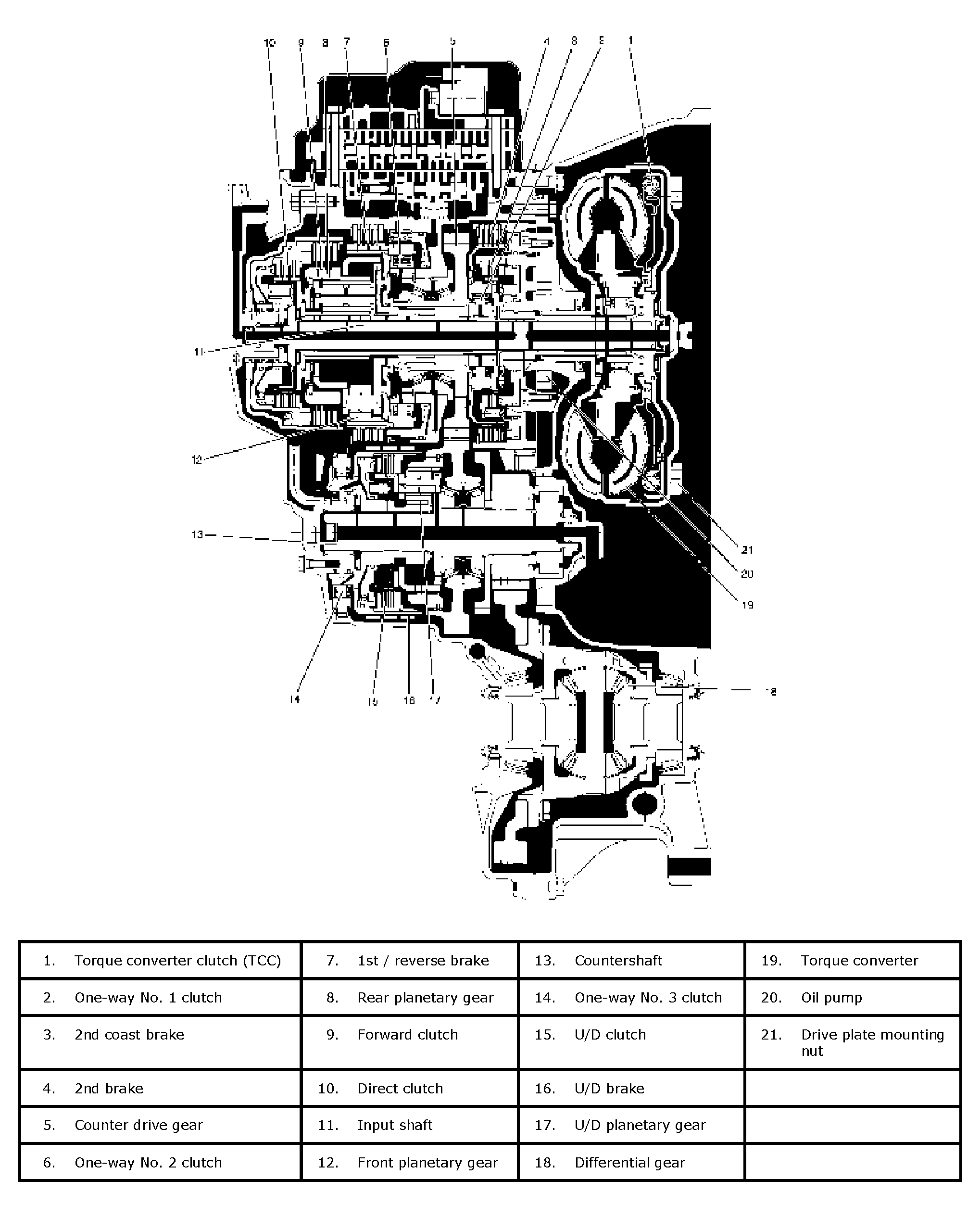

Fig 1: Sectional View Of A/T (2WD)

G04591799

Courtesy of SUZUKI OF AMERICA CORP.
