Contact Coil and Combination Switch Assembly Inspection

Reference: CONTACT COIL AND COMBINATION SWITCH ASSEMBLY REMOVAL AND INSTALLATION

Check contact coil harness (1) for any signs of scorching, melting or other damage.

If it is damaged, replace.

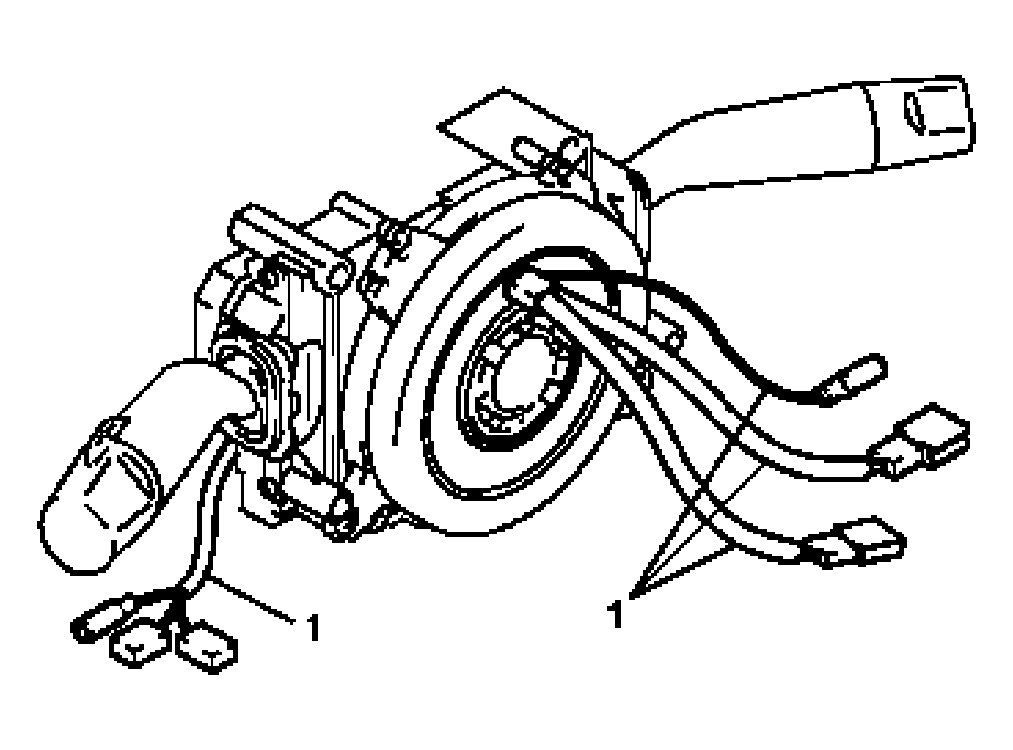

Fig 1: Inspecting Contact Coil And Combination Switch Assembly

Courtesy of SUZUKI OF AMERICA CORP.
