Steering Wheel and Column Construction

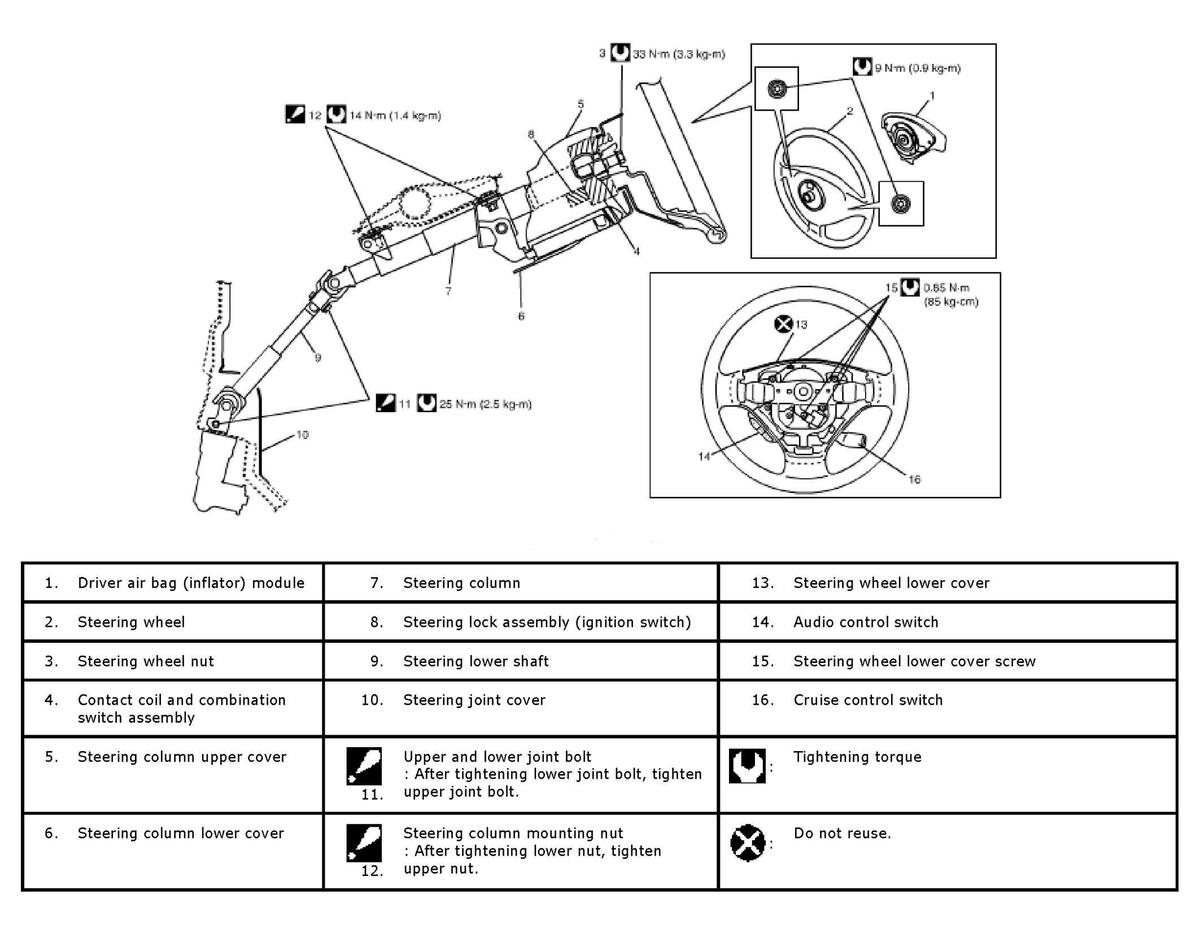

Fig 1: Identifying Steering Wheel And Column (With Tightening Torques)

G04590674

Courtesy of SUZUKI OF AMERICA CORP.
