Tie-Rod End Boot Check

Check boot for crack and damage. If any defect is found, replace it with a new one.

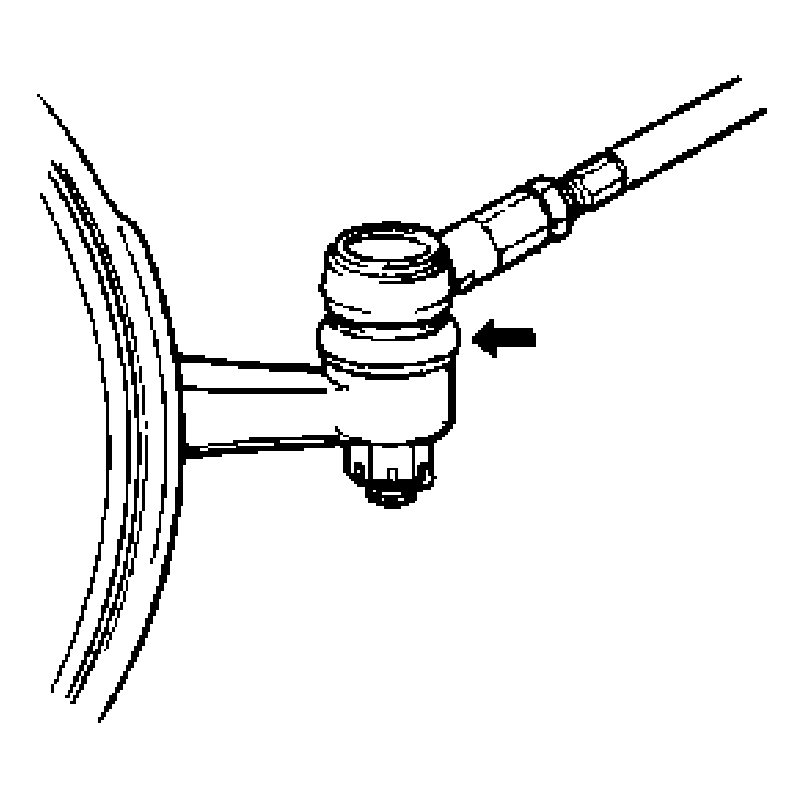

Fig 1: Checking Tie-Rod End Boot

G04590725

Courtesy of SUZUKI OF AMERICA CORP.
