P/S Pump Components

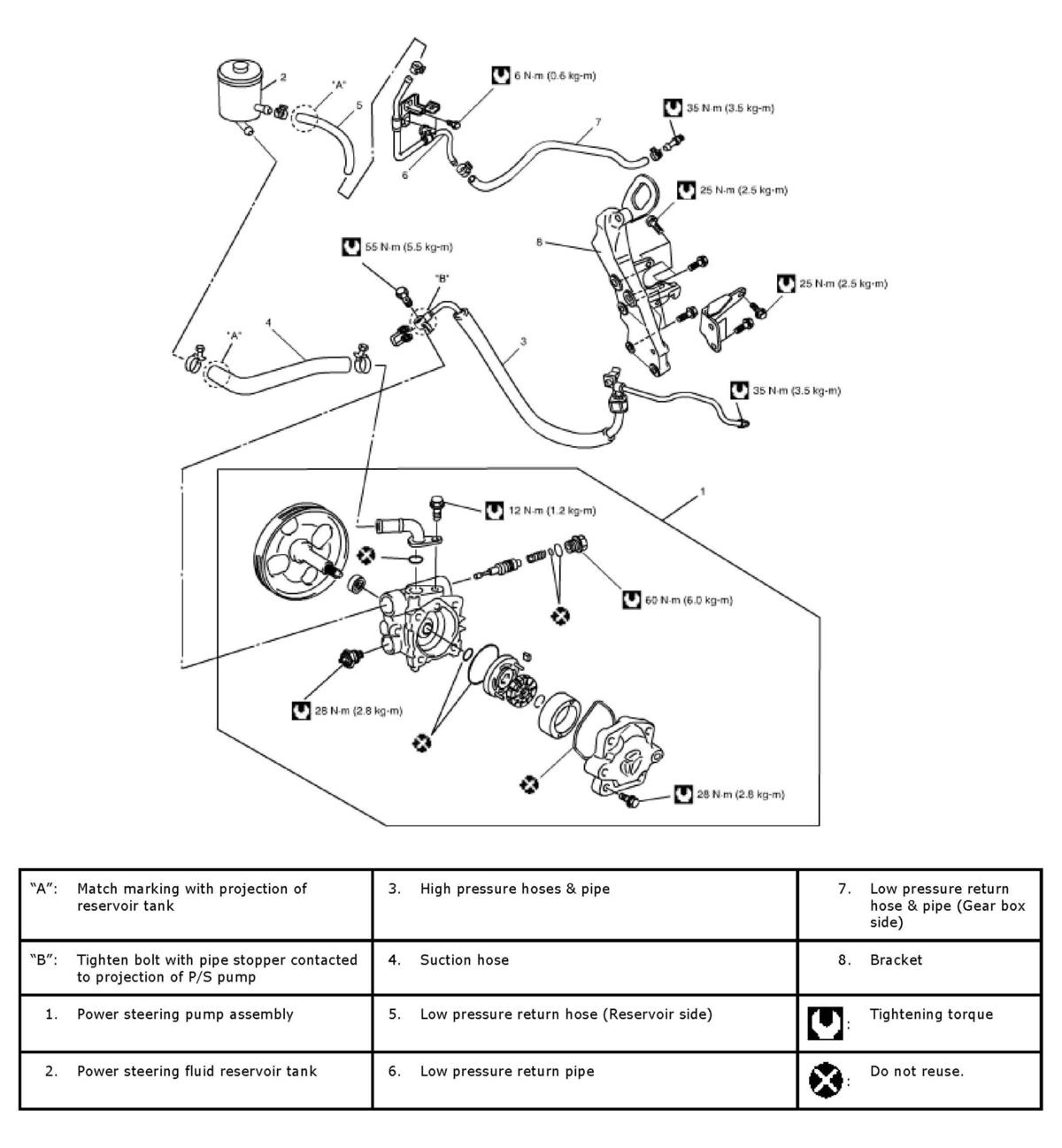

Fig 1: Identifying P/S Pump Components (With Tightening Torques)

G04590747

Courtesy of SUZUKI OF AMERICA CORP.
