P/S Gear Box Components

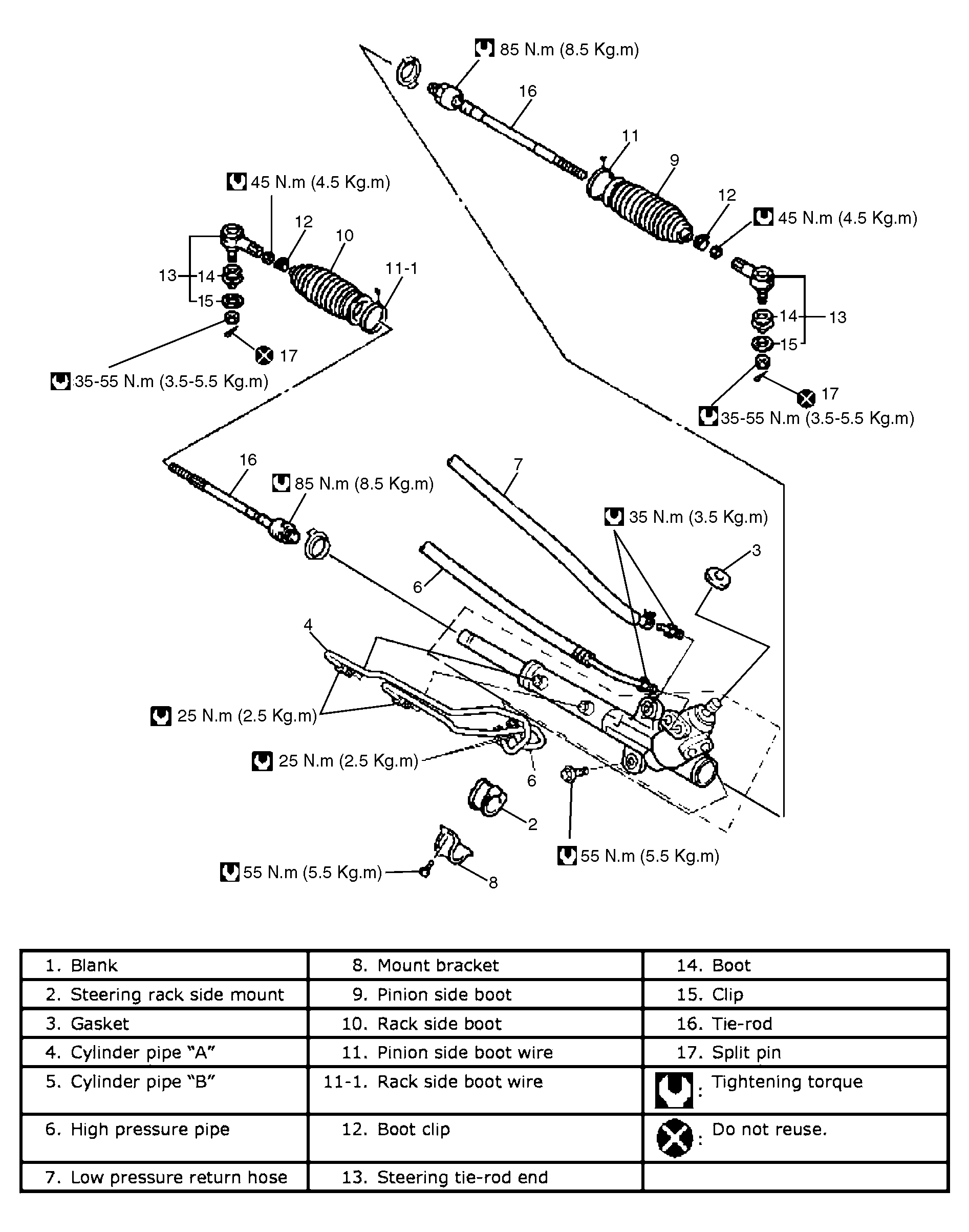

Fig 1: Identifying P/S Gear Box Components (With Tightening Torques)
G04590735Courtesy of SUZUKI OF AMERICA CORP.
NOTE: Component enclosed in broken line cannot be disassembled and adjusted.
