P/S Fluid Leakage Check

Start engine and turn steering wheel fully to the right and left so that maximum hydraulic pressure is provided. Then visually check gear box, P/S pump and P/S fluid reservoir themselves and each joint of their connecting pipes for leakage.

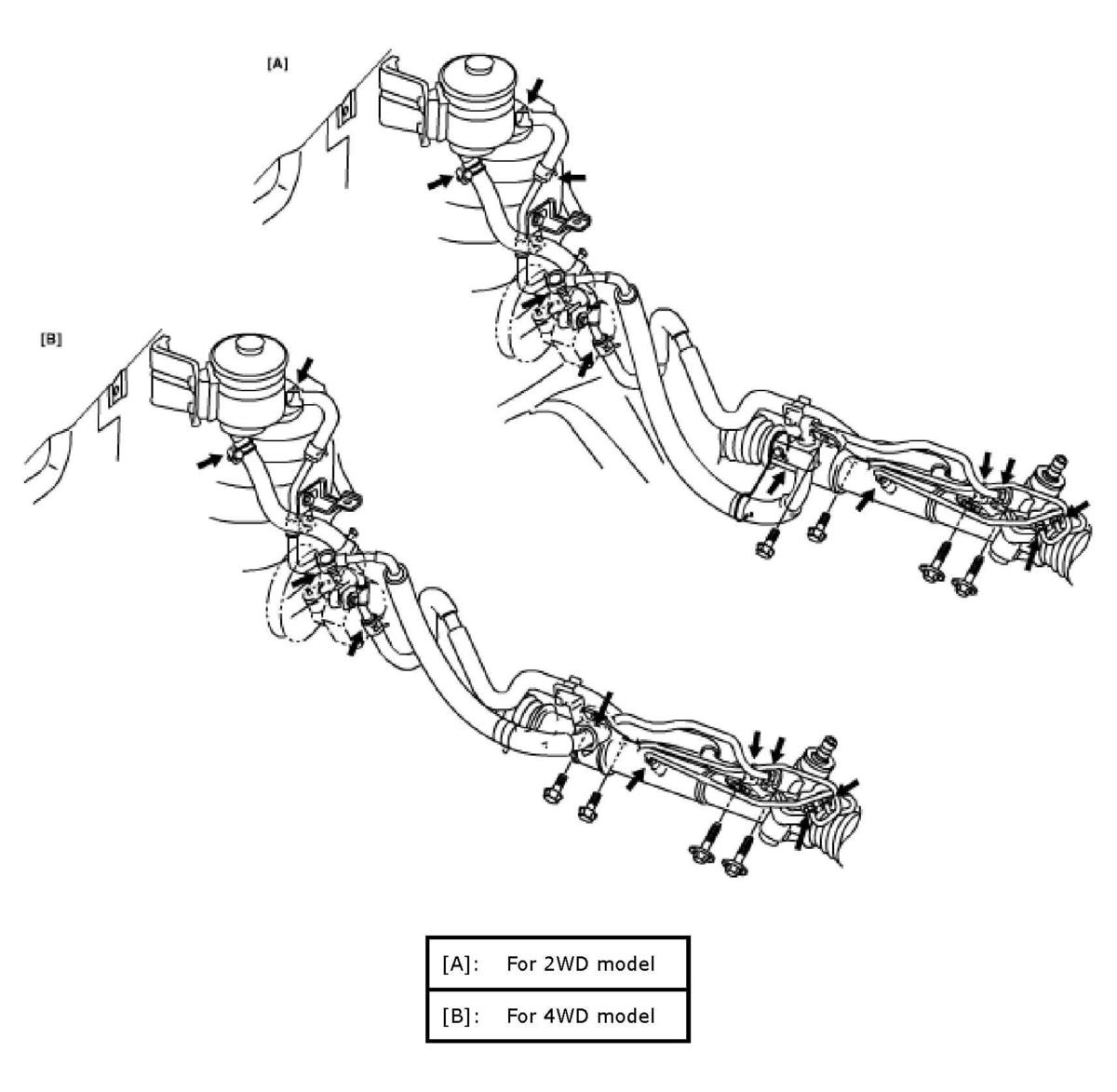

Fig 1: Identifying P/S Fluid Leakage Points

Courtesy of SUZUKI OF AMERICA CORP.
