P/S Gear Box Removal and Installation: Removal

Take out fluid in P/S fluid reservoir with syringe or such.
After removing joint cover, loosen steering shaft upper joint bolt (1) (but it must not be removed) and remove lower joint bolt (2).
CAUTION: Be sure to set front wheels (tires) in straight direction and remove ignition key from key cylinder before the following steps, otherwise contact coil of air bag system may get damaged.

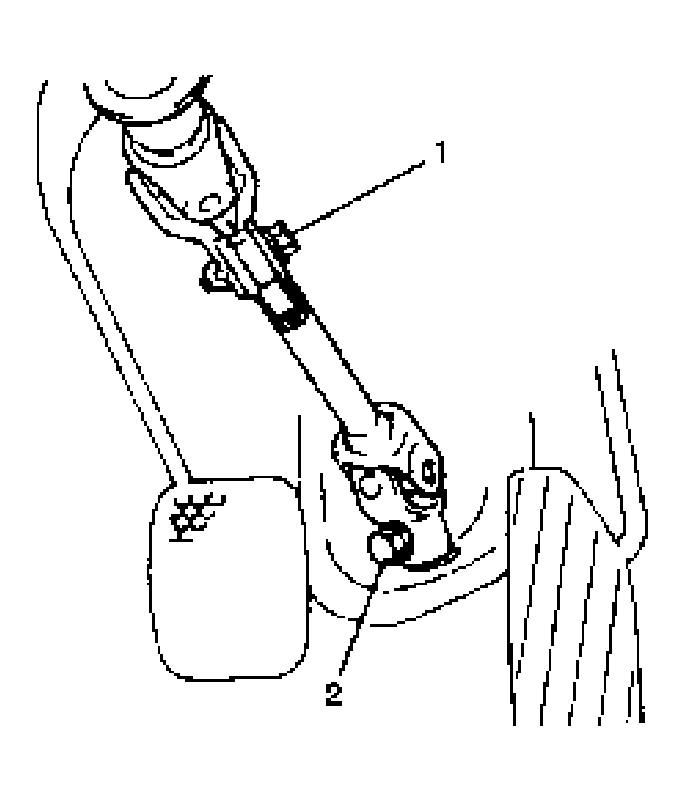

Fig 1: Removing Lower Joint Bolt
Courtesy of SUZUKI OF AMERICA CORP.
With front wheels in straight-ahead position, separate pinion and lower joint.
Hoist vehicle and remove both right and left front wheels.
Remove split pin (3) and then remove tie-rod castle nut (2) from steering knuckle (1).

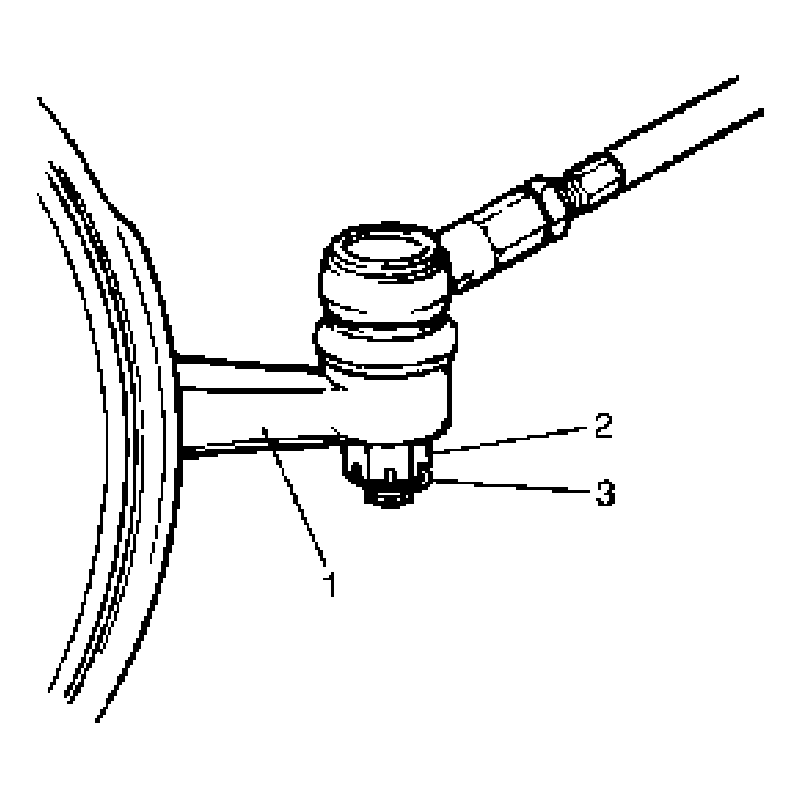

Fig 2: Removing Tie-Rod Castle Nut From Steering Knuckle
Courtesy of SUZUKI OF AMERICA CORP.
Using special tool, remove tie-rod end (2) from knuckle (1).
Special Tool
1. 09913-65210

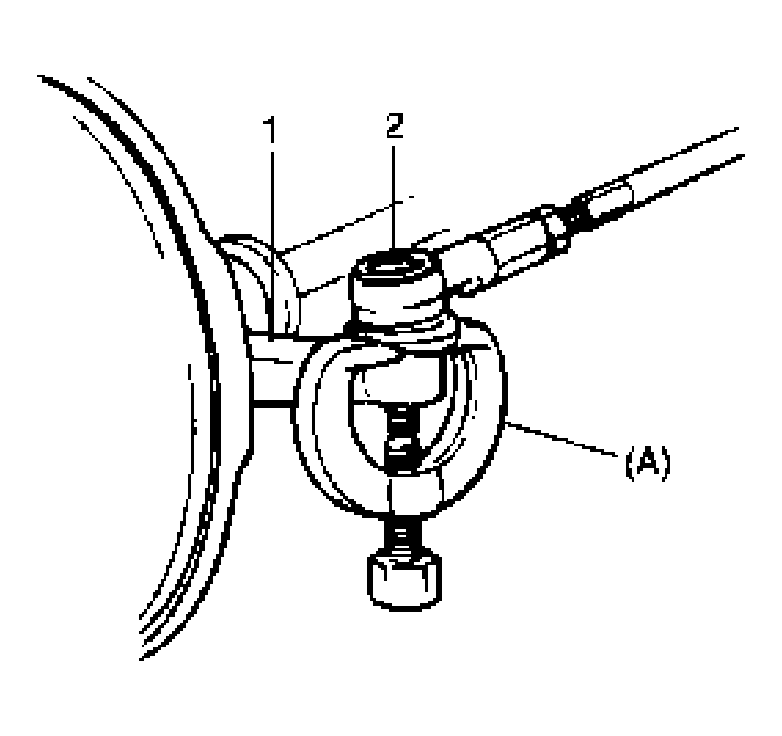

  Fig 3: Removing Tie-Rod End From Knuckle
  Courtesy of SUZUKI OF AMERICA CORP.
Remove exhaust pipe No.2.
Remove engine rear mounting (1) together with its bracket (2) from engine and member, and remove engine mounting member (3).

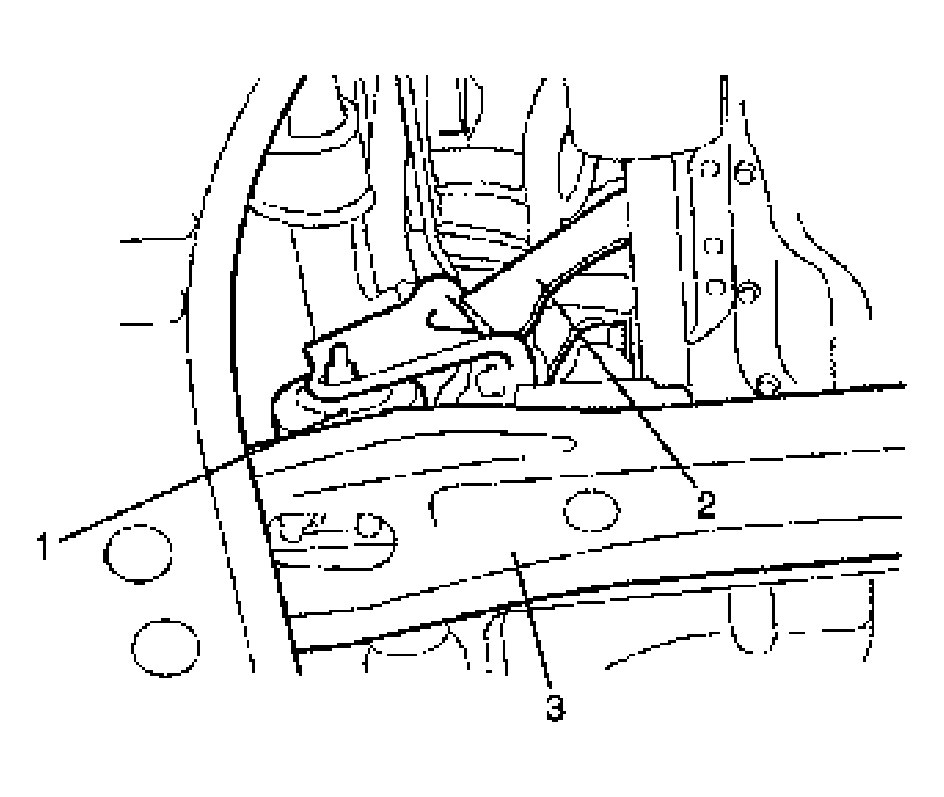

Fig 4: Removing Engine Mounting Member
Courtesy of SUZUKI OF AMERICA CORP.
For vehicle equipped with 4WD, remove transfer referring to TRANSFER DISMOUNTING AND REMOUNTING .
Remove cylinder pipes (3) and (4) from steering gear box, using flare nut wrench.
NOTE: As fluid flows out of disconnected joints, put a receptacle under joints or a plug to pipe.
Disconnect high pressure pipe (1) and low pressure hose (2) from steering gear box, using flare nut wrench.
NOTE: As fluid flows out of disconnected joints, have a container under joints or a plug to pipe.

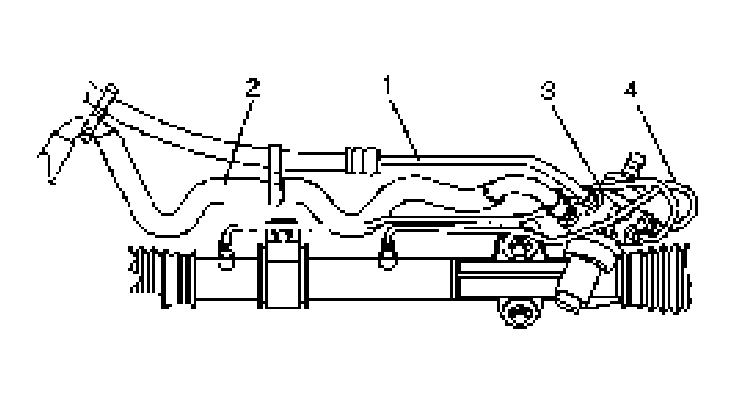

Fig 5: Disconnecting High Pressure Pipe And Low Pressure Hose From Steering Gear Box
Courtesy of SUZUKI OF AMERICA CORP.
Remove steering gear box mounting bolts and then remove steering gear box from vehicle.
